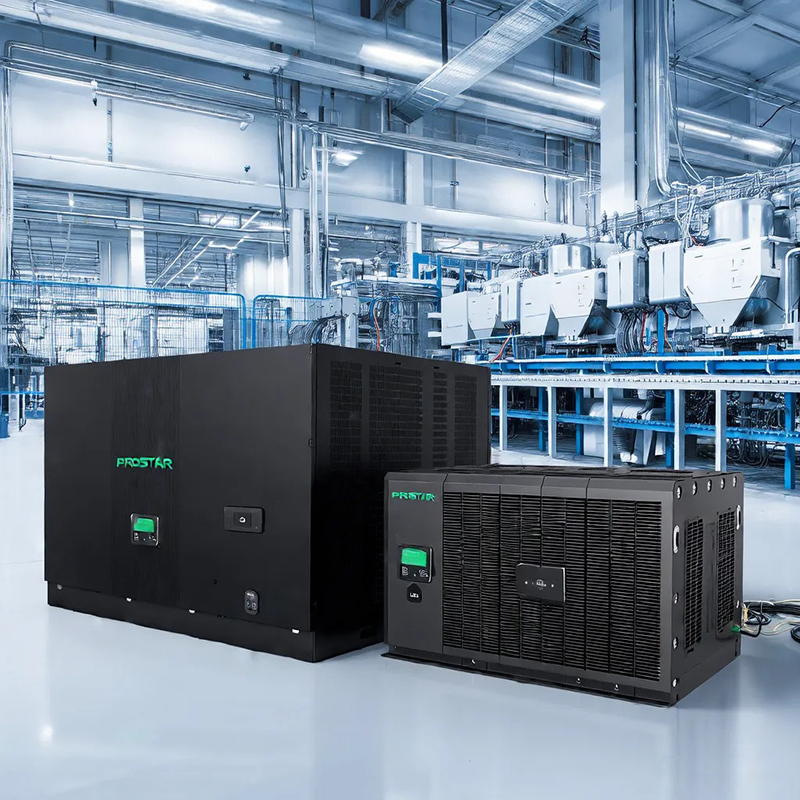

Industrial Uninterruptible Power Supply (UPS) systems are critical infrastructure components designed to ensure continuous power delivery in demanding industrial environments. The industrial UPS backup system will protect sensitive equipment, maintain operational continuity, and prevent costly downtime across manufacturing, healthcare, telecommunications, and other vital sectors.
The integration of generators with industrial UPS backup system is designed to provide seamless power protection during utility power failures. The primary function of this integration is to ensure that there is no break in power supply when switching from utility power to generator power, thus preventing any potential damage or downtime to sensitive electronic devices and machinery.
Core Components of Industrial UPS Backup System
Every industrial UPS relies on four essential elements:
1. Rectifier: Converts AC input to DC power, charges batteries, and handles voltage fluctuations.
2. Batteries: Provide emergency power during outages, typically using VRLA, flooded cell, or lithium-ion technologies.
3. Inverter: Transforms DC power back to clean AC output with <5% harmonic distortion, ensuring stable voltage.
4. Static Bypass Switch: Automatically reroutes power to mains during UPS failures, maintaining equipment operation.
5. Control and Monitoring System: Modern UPS systems include sophisticated control systems that monitor the health of the UPS, battery status, and environmental conditions. These systems often come with remote monitoring capabilities, which enable operators to track performance and anticipate maintenance needs.
How It Works
Initial Response
In the event of a power outage, the UPS immediately takes over, providing power without interruption until the generator can stabilize and take over.
Generator Activation
Once the industrial UPS backup system has taken over, it signals the generator to start up. Modern systems are capable of automating this process to minimize human intervention.
Power Transfer
After the generator stabilizes, the system automatically transfers the load from the UPS to the generator. This transfer is managed smoothly to avoid any electrical disturbances.
Continuous Operation
With the generator now powering the facility, operations can continue without interruption until utility power is restored.
Operational Advantages
Downtime Prevention
Seamless power transition maintains productivity during outages, crucial for continuous manufacturing processes.
Equipment Protection
Filters voltage spikes/sags (up to ±10% tolerance), extending machinery lifespan.
Cost Efficiency
Reduces energy waste through advanced power conditioning, lowering operational expenses by 15-30%.
Data Integrity
In data-sensitive environments such as industrial control systems, computer networks, and manufacturing processes, power interruptions can result in data corruption or loss. A UPS system ensures that data remains intact by providing enough time for proper backups or system shutdowns.
Safety
In industries that deal with hazardous materials, power loss can trigger safety concerns. A UPS provides the necessary power to maintain safety protocols, lighting, alarms, and other critical systems during outages.
Choose Suitable Industrial UPS Backup System Solutions
Industrial UPS systems require careful evaluation of technical specifications, environmental conditions, and operational demands to ensure reliable power protection in harsh settings. These solutions must balance power capacity, durability, and adaptability to meet industry-specific challenges. UPS Systems for Reliable Backup Power Solutions During Power Outages
Load Requirements Analysis
- Calculate total power consumption using equipment nameplate ratings or power meters.
- Add 20-30% capacity buffer to accommodate load spikes and future expansion.
- Verify voltage compatibility (120V/230V single-phase or 380V/415V three-phase).
Environmental Resilience
| Factor | Requirement |
|---|---|
| Temperature | -25°C to 55°C operational range. |
| Protection | IP31 dust/water resistance for manufacturing plants |
| Vibration | MIL-STD-810G compliance for oil/gas platforms |
Battery Configuration
- Lithium-ion batteries preferred for high-temperature (>50°C) environments.
- Calculate runtime using formula:
Battery Capacity Ah = Total Load W × Runtime h / Battery Voltage V * 0.85
- Implement redundant battery modules for critical processes
Power Conditioning
- Minimum 98% input power factor correction.
- <5% total harmonic distortion (THD) at full load.
- 0-100% load step response within 2ms.
System Architecture
- Online double-conversion topology for sensitive equipment.
- N+1 parallel redundancy configuration.
- Static transfer switch with <4ms transition time.
Site Assessment
- Measure existing power quality (sags/swells/frequency variations).
Combining Industrial UPS Backup System with Generator
Combining industrial Uninterruptible Power Supply (UPS) systems with generator systems creates a robust power protection solution that addresses both short-term and extended power disruptions. This integration leverages the strengths of both technologies to ensure continuous operations in critical industrial environments.
Key Advantages of UPS-Generator Integration
Seamless Power Transition
- UPS bridges the 10-30 second generator startup gap with zero transfer time, maintaining power to critical loads.
- Eliminates voltage sags/frequency variations during generator engagement.
Enhanced Power Quality
UPS: Filters harmonics (THD <3%) and regulates voltage (±1%).
Generator: Provides stable base power after initial stabilization.
Home Power Protection: Generators vs. Uninterruptible Power Supplies
Optimized Runtime Management
- UPS handles short outages (≤15 minutes), reducing generator starts by 40-60%.
- Generator sustains operations during extended outages (hours/days).
- Combined system achieves 99.9999% (“six nines”) uptime.
Fuel Efficiency Improvements
- Load-sharing configuration reduces generator runtime by 35%.
- UPS battery buffer allows generators to operate at optimal 70-80% load range.
Implementation Best Practices
Sizing Coordination
- UPS capacity ≥125% of critical load.
- Generator capacity ≥150% of UPS maximum input.
Synchronization Requirements
- Frequency tolerance: ±0.5Hz.
- Voltage matching: ±5%.
- Phase alignment: <3° displacement.
Maintenance Synergy
Shared monitoring systems track:
- UPS battery health (impedance <50mΩ/cell).
- Generator fuel quality (water content <0.5%).
- System synchronization status.
For petrochemical plants and semiconductor fabs, this integration typically reduces power-related downtime by 92% compared to standalone systems. The combined solution proves particularly effective in regions with unstable grids, where it can decrease total ownership costs by 28% over 10 years through reduced fuel consumption and maintenance requirements.
