Uninterruptible Power Supply (UPS) systems play a crucial role in maintaining power continuity, safeguarding sensitive equipment, and ensuring seamless operations in businesses, data centers, hospitals, and other critical facilities. In today’s digital age, even brief power interruptions can lead to significant data loss, operational disruptions, or equipment damage. Understanding how UPS systems work involves exploring their key components, functionality, and various types.
What is a UPS System?
A UPS system is an electrical apparatus designed to supply emergency power to a load when the input power source, typically the utility grid, fails. It bridges the gap between the main power outage and the activation of a standby power source or provides enough time for an orderly shutdown of protected equipment.
Key Components of a UPS System
Rectifier
Converts incoming AC power to DC power to charge the battery.
Battery
The battery is the heart of any UPS system. It stores DC power that is used to power the inverter and connected loads during a power outage. The type of battery used depends on the UPS system’s rating and intended application. Common battery types include lead-acid, lithium-ion, and nickel-cadmium.
Inverter
The inverter is a crucial component of a UPS system. It converts the DC power from the battery to AC power, which is then supplied to the connected loads. In online UPS systems, the inverter continuously operates to provide clean, filtered power to the loads. The inverter uses advanced power electronics and control algorithms to ensure efficient and reliable power conversion.
Static Bypass Switch
Provides a direct connection from the input to the output, bypassing the UPS system if necessary.
Control Unit
Manages the UPS operations, including monitoring power quality and battery status.
Functionality
A UPS system operates by constantly monitoring the incoming power supply. Here’s a step-by-step overview of its functionality:
Normal Operation
When the main power supply is stable, the rectifier converts AC power to DC power, which charges the battery and powers the inverter. The inverter then converts DC power back to AC power, providing clean and stable power to the connected devices.
Power Outage
During a power failure, the UPS immediately switches to battery power. The inverter draws DC power from the battery and converts it to AC power, ensuring an uninterrupted power supply to the devices.
Power Restoration
When the main power is restored, the rectifier takes over again, converting AC power to DC to recharge the battery and continue supplying power through the inverter.
Overload or Fault
If the connected load exceeds the UPS capacity or if there’s an internal fault, the static bypass switch activates, allowing the power to bypass the UPS and go directly to the devices. This protects the UPS from damage and ensures continuous power supply.
Types of UPS Systems
Standby (Offline) UPS
This type provides basic protection and is suitable for less critical applications. It switches to battery power only during an outage, with a slight delay.
Line-Interactive UPS
This type offers better protection by regulating voltage fluctuations through an autotransformer. It provides a faster switch to battery power during an outage.
Online (Double Conversion) UPS
This type offers the highest level of protection by continuously converting incoming AC power to DC and then back to AC, ensuring a constant and clean power supply. It has zero transfer time to battery power, making it ideal for critical applications.
How UPS Systems Work: A Step-by-Step Guide
1. Power Supply from the Grid
- Input: Mains power enters the UPS and is fed into the rectifier.
2. Rectification and Conversion
- Rectifier: Converts AC (Alternating Current) from the grid to DC (Direct Current) to charge the batteries and supply power to the inverter.
- Charger: Manages battery charging, ensuring they’re ready for use when needed.
3. Inverter Operation
- Conversion: The DC power is converted back to clean AC by the inverter, which powers the connected equipment.
- Conditioning: The inverter also filters out voltage spikes, sags, and harmonics, providing a stable power supply.
4. Battery Backup Activation
- Detection: When the main power fails or falls outside predefined parameters, the UPS detects the disturbance almost instantly.
- Switching: The system switches to battery power within milliseconds, ensuring uninterrupted power to the load.
5. Battery Management
- Discharge: During power outages, the batteries discharge, providing power until the backup generator starts or the load is safely shut down.
- Recharge: Once mains power is restored, the charger replenishes the batteries
Related UPS Systems
Applications
UPS systems are widely used across various sectors to protect sensitive electronic equipment from power disturbances. Some common applications include:
- Data Centers: Ensuring continuous operation of servers and networking equipment.
- Healthcare: Protecting medical devices and ensuring patient safety during power outages.
- Telecommunications: Maintaining operation of communication networks.

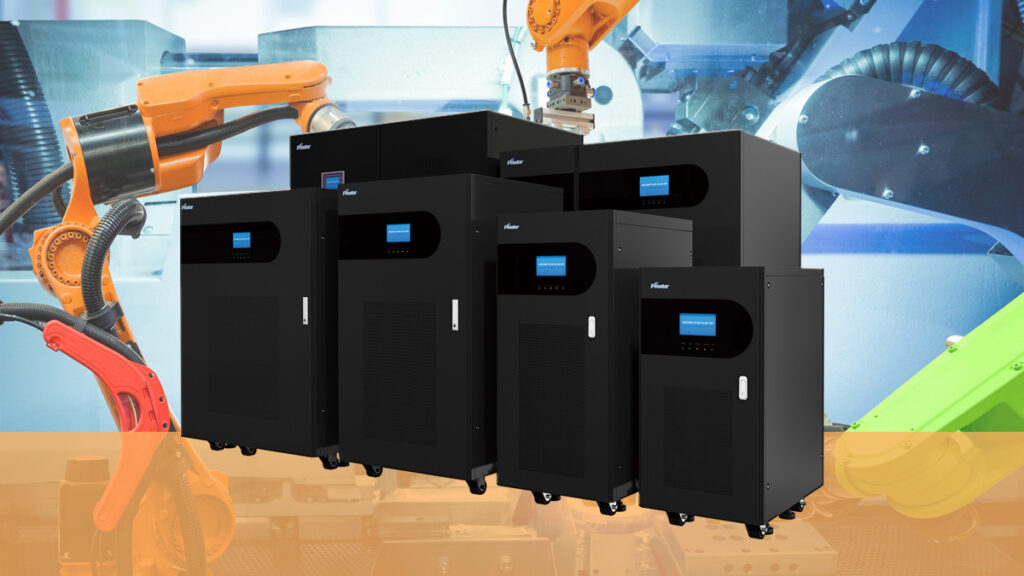

- Industrial: Safeguarding manufacturing processes and equipment.
Conclusion
UPS systems are vital for maintaining the continuity and protection of electronic devices during power disruptions. By understanding their components, functionality, and types, businesses and individuals can choose the appropriate UPS system to meet their specific needs, ensuring uninterrupted operations and safeguarding valuable equipment.
