Three Phase Industrial UPS Systems Provide Power Protection for Industrial

Industrial UPS systems can provide backup power to critical industrial equipment during power outages, fluctuations, or disturbances. Manufacturers specifically build industrial UPS systems to meet the demanding requirements of industrial environments, where power disruptions can lead to equipment damage, production downtime, data loss, and safety hazards. These UPS systems typically offer higher power capacities, enhanced durability, voltage regulation, power quality features, and the ability to withstand harsh environmental conditions. They play a crucial role in ensuring uninterrupted operation, protecting sensitive industrial equipment, and maintaining productivity, safety, and operational efficiency in industrial settings.

Industrial UPS Benefits

Higher Power Capacity

Manufacturers create three-phase industrial UPS systems to handle higher power loads commonly found in industrial environments. They are capable of supporting large motors, pumps, compressors, and other heavy-duty machinery. With their higher power capacity, they can provide continuous power backup to critical industrial processes, preventing costly downtime and equipment damage.

Enhanced Efficiency

3 Phase online UPS offer higher efficiency compared to single-phase UPS systems. By distributing the power across three phases, they minimize power losses and reduce energy consumption. This efficiency translates into cost savings and a smaller environmental footprint.

Voltage Regulation and Power Quality

Industrial applications require a stable and clean power supply. Three-phase UPS systems provide precise voltage regulation, compensating for voltage sags, surges, and fluctuations. They also offer excellent harmonic distortion reduction, ensuring the delivery of clean and reliable power to critical equipment. This improves the performance and lifespan of industrial machinery while minimizing the risk of malfunctions and downtime.

Scalability and Redundancy

Industrial operations often have expanding power requirements. Three-phase industrial UPS systems can scale to accommodate increased loads. They offer modular designs that allow for the addition of UPS modules as power demands grow. Furthermore, redundant configurations can provide higher levels of reliability and fault tolerance. Redundant UPS modules ensure that critical equipment remains powered even if one module fails, offering a higher level of system availability.

Robust Construction and Environmental Adaptability

Industrial environments can be harsh, with high temperatures, humidity, and vibrations. Three-phase industrial UPS systems can withstand these challenging conditions. They feature rugged construction and advanced thermal management systems to ensure reliable operation in extreme environments. Additionally, they are equipped with protective features such as dust filters, corrosion-resistant coatings, and vibration dampening, making them suitable for a wide range of industrial settings.

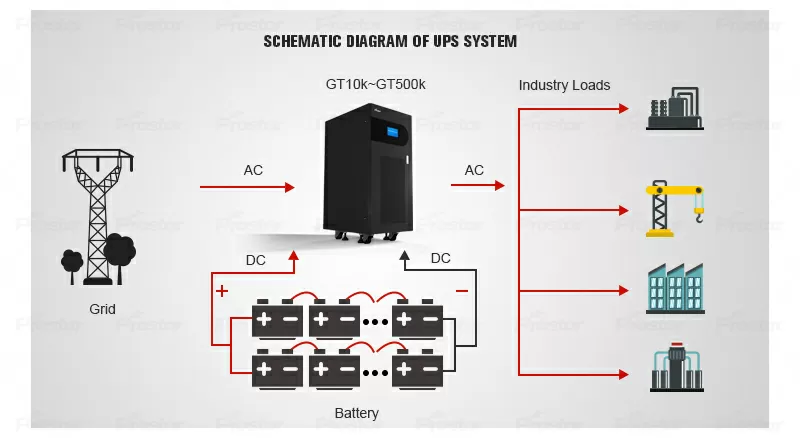

How do industrial UPS systems work?

Industrial UPS (Uninterruptible Power Supply) systems work by providing backup power to critical equipment during utility power outages or fluctuations. Here is a simplified explanation of how they work:

AC-to-DC Conversion

The industrial UPS system will connect to the utility power source, which supplies alternating current (AC) power. The UPS system includes a rectifier, which converts the AC power into direct current (DC) power. This DC power charges the internal batteries of the UPS system.

Battery Backup

The batteries in the UPS system serve as a backup power source. They store the power and for charging and ready to supply power during an outage or when the utility power quality is poor.

Inverter Conversion

When an outage or power disturbance occurs, it will activate the UPS system’s inverter. The inverter converts the DC power from the batteries back into AC power, mimicking the utility power’s voltage, frequency, and waveform characteristics.

Seamless Power Transfer

As soon as the inverter starts supplying AC power, it seamlessly transfers the load from the utility power source to the UPS system’s battery power. This instantaneous transfer ensures uninterrupted power supply to the critical equipment without any disruption.

Continuous Monitoring

Industrial UPS systems continuously monitor the incoming utility power. If the power quality falls below acceptable levels (e.g., voltage sags, surges, harmonics), the UPS system uses its internal electronics to regulate and stabilize the power output, protecting the connected equipment from potential damage.

Return to Utility Power

Once the utility power is restored and stabilized, the UPS system automatically transfers the load back to the utility power source. This transfer is seamless and occurs without interrupting the power supply to the connected equipment.

Additionally, industrial UPS systems often incorporate features such as surge suppression, voltage regulation, and isolation transformers to provide additional protection against electrical disturbances and enhance the overall power quality delivered to critical loads.
By employing these mechanisms, industrial UPS systems ensure that sensitive industrial equipment receives a continuous and reliable power supply, preventing downtime, equipment damage, and data loss during power disruptions.
