As the demand for renewable energy continues to grow, hybrid inverters have become a cornerstone of modern solar power systems. Among these, the hybrid inverter 10kw is an optimal choice for residential and small commercial applications.
What Is a Hybrid Inverter?
A hybrid inverter is a multi-functional device that integrates solar energy generation, battery storage, and grid connection. Unlike traditional inverters, it allows you to manage power from various sources, making it an ideal solution for energy independence and efficiency. The hybrid inverter 10kw is specifically designed to handle higher energy demands, making it suitable for larger households or small businesses.
It can work with a battery bank that supplies 48 volts. This voltage is a common standard for residential and commercial solar systems due to its balance of efficiency and safety. To determine the number of batteries required, it’s important to consider:
- Battery Voltage
- Battery Type
- System Capacity Requirements
Hybrid Inverter 10kW Key Features
High Capacity
With a 10kW power output, these inverters can manage substantial energy loads, catering to properties with high electricity usage.
Battery Supports
Hybrid inverters support battery storage, enabling users to store excess solar energy for use during nighttime or grid outages.
Smart Energy Management
Equipped with intelligent algorithms, they optimize energy usage by prioritizing solar power, stored energy, and grid power based on demand.
Multiple Operation Modes
- Off-grid mode: Powers loads independently from the grid.
- Grid-tied mode: Supplements solar energy with grid power.
- Backup mode: Ensures uninterrupted power during outages.
Advanced Monitoring

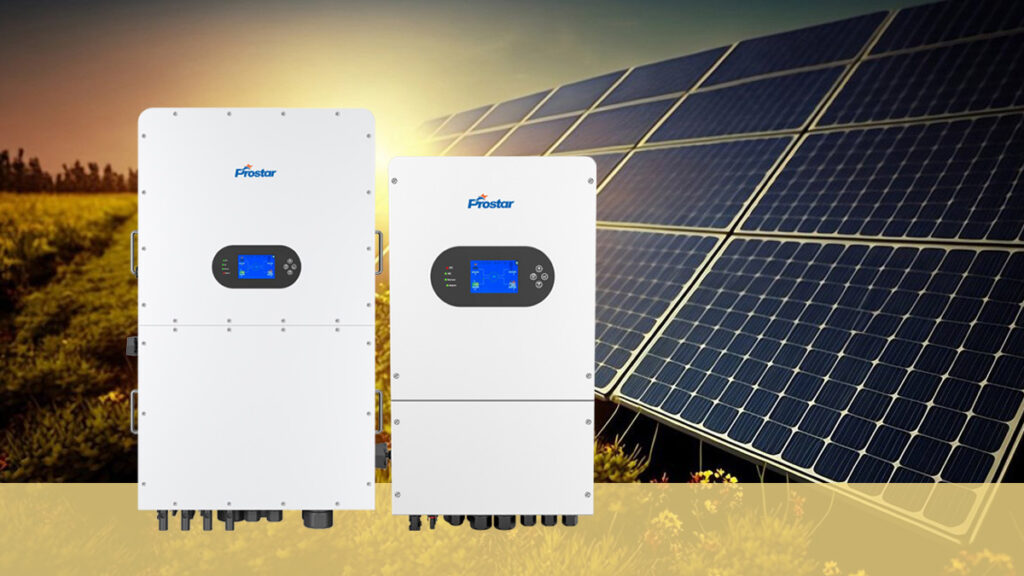

Prostar PHYD10K IP65 best 48v hybrid solar inverter 10kw single phase can come with Wi-Fi or app-based monitoring, allowing real-time tracking of energy production and consumption.
IP65 Protection
Weather-resistant design for reliable outdoor installation, providing protection against dust and water ingress.
Peak Shaving
The inverter’s peak shaving feature helps manage demand charges by using stored energy during peak rate hours, reducing reliance on the grid and saving on electricity bills.
Factors to Consider When Choosing a 10kW Hybrid Inverter
Battery Compatibility
Ensure the inverter supports the type and capacity of batteries you plan to use, such as LiFePO4 or lead-acid.
Efficiency Rating
Look for inverters with high efficiency (above 95%) to maximize energy utilization.
Warranty and Support
Choose a product with a reliable warranty (at least 5 years) and accessible customer service.
Certifications
Verify compliance with local grid regulations and international safety standards.
Related Hybrid Inverter
How Many Batteries do I Need for A Hybrid Inverter 10KW?
A 48V system voltage means that the total voltage of all connected batteries must sum up to 48V. For a 10kW inverter, you also need to ensure that the battery bank can provide enough current to meet the power demands of the inverter under load.
Using 12V Lead-Acid Batteries
These are widely used and readily available, making them a cost-effective option. To create a 48V system, you need to connect four 12V batteries in series.
Series Connection
In this setup, the voltage of each battery adds up while the capacity (Ah) remains the same. For example:
Four 12V 200Ah batteries in series = 48V 200Ah system.
Capacity Consideration
Determine the required ampere-hour (Ah) rating based on the energy needs of your system. For example, if you need 10kWh of energy storage, and assuming a 80% depth of discharge (DoD) to prolong battery life, you would need:
Required Ah = Energy Requirement / (Voltage×DoD)
That is: Required Ah = 10kWh / (48V * 80%) ≈ 261Ah
Total Number of Batteries
If each 12V battery has a capacity of 200Ah, you would need:
- Batteries in Parallel = 261Ah / 200Ah ≈ 1.30
- Since you cannot have a fraction of a battery, round up to 2 sets in parallel. Therefore, the total number of 12V batteries needed is 4×2=8.
So, if you choose 200Ah 12V lead-acid batteries for a 48V hybrid inverter with a 10kW capacity, you will need 8 sets.
51.2V Lithium-Ion Batteries
Lithium batteries, particularly LiFePO4 (Lithium Iron Phosphate), are highly efficient, lightweight, and have a longer lifespan. These batteries are often designed specifically for 48V systems with a nominal voltage of 51.2V.
Number of Batteries in Series
Typically, one 51.2V lithium battery is sufficient for a 48V system.
Capacity Consideration
Similar to the 12V lead-acid calculation, determine the required Ah based on your energy needs. For a 10kWh requirement at 80% DoD:
Required Ah = 10kWh / (51.2V * 80%) ≈ 244.14Ah
Total Number of Batteries
If each 51.2V lithium battery has a capacity of 280Ah, you would need:
- Batteries in Parallel = 244.14Ah / 280Ah ≈ 0.87
- Round up to 1 set in parallel. Therefore, the total number of 51.2V batteries needed is 1 set lifepo4 lithium battery 51.2V 280AH.
Summary:
For a 48V hybrid inverter with a 10kW capacity:
- 12V Lead-Acid Batteries: You will need 8 batteries (4 in series and 2 in parallel) 12V 200AH.
- 51.2V Lithium Batteries: You will need 1 battery (1 in series and 1 in parallel) 51.2V 280AH.
Which Battery Type Should You Choose?
| Factor | 12V Lead-Acid | 51.2V Lithium-Ion |
| Cost | Lower upfront cost | Higher upfront cost |
| Lifespan | 3–5 years | 10–15 years |
| Depth of Discharge | 50% | 80–90% |
| Efficiency | ~80% | ~95% |
| Maintenance | Regular maintenance required | Minimal maintenance |
To ensure your system is optimized for your energy needs, always calculate your total energy requirements and consult with a professional when designing your battery bank. Investing in the right battery solution can maximize your hybrid inverter’s performance and provide reliable power for years to come.
Related LiFePO4 Lithium Battery
Why Invest in a Hybrid Inverter Now?
With the global push toward renewable energy and the increasing cost of electricity, hybrid inverters offer a practical and future-proof investment. They not only enhance energy efficiency but also provide peace of mind with consistent power availability.
