A 48V LiFePO4 battery is a type of lithium-ion battery that uses lithium iron phosphate as the cathode material. Unlike traditional lead-acid batteries, LiFePO4 batteries offer higher energy density, longer lifespan, and improved safety. The 48V configuration is particularly suitable for applications requiring moderate to high power output, making it ideal for both residential and commercial use.
Understanding LiFePO4 Batteries
Before diving into the charging process, it’s essential to understand the characteristics of LiFePO4 batteries:
Voltage
A fully charged 48V LiFePO4 battery typically consists of 16 cells in series, with each cell having a nominal voltage of 3.2V. The fully charged voltage is around 3.65V per cell, leading to a total of approximately 58.4V when fully charged.
Charging Profile
LiFePO4 batteries require a specific charging profile, usually a constant current (CC) followed by a constant voltage (CV) phase.
LiFePO4 batteries charge in two stages: constant current (fast charging) followed by constant voltage (topping off).

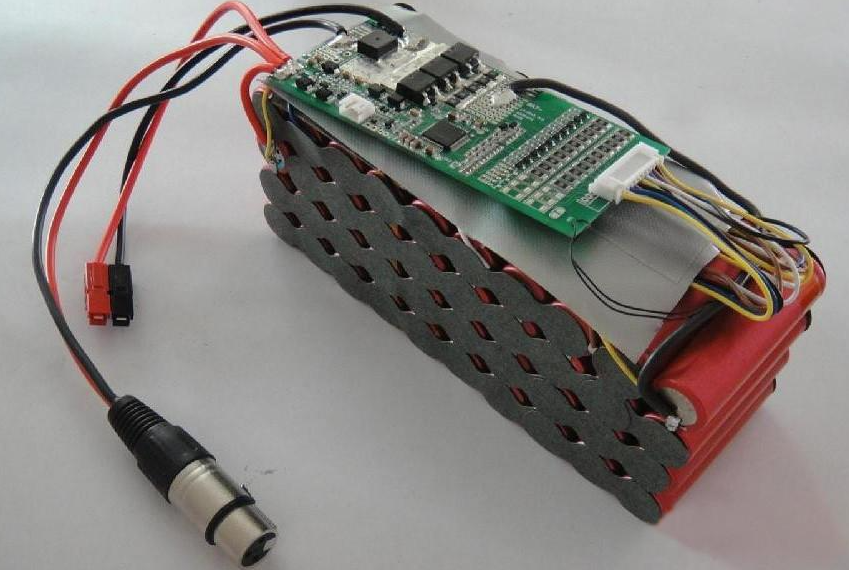

BMS (Battery Management System)
Most LiFePO4 batteries come with a BMS that protects against overcharging, over-discharging, and short circuits.
Features of 48V LiFePO4 Battery
High Energy Density
LiFePO4 batteries provide a higher energy density compared to lead-acid batteries, meaning they can store more energy in a smaller and lighter package. This makes them ideal for applications where space and weight are critical factors.
Long Cycle Life
One of the most significant advantages of LiFePO4 batteries is their long cycle life. They can typically endure 2000 to 5000 charge-discharge cycles, depending on the depth of discharge (DoD) and operating conditions. This longevity translates to lower replacement costs and reduced environmental impact over time.
Safety and Stability
LiFePO4 chemistry is inherently stable and less prone to thermal runaway or combustion compared to other lithium-ion chemistries. This makes 48V LiFePO4 batteries a safer option for applications where safety is a priority.
Fast Charging
These batteries support faster charging rates, allowing users to recharge them quickly and efficiently. This feature is particularly beneficial in applications where downtime needs to be minimized.
Eco-Friendly
LiFePO4 batteries are free from toxic heavy metals like lead and cadmium, making them more environmentally friendly. They are also more recyclable compared to traditional battery technologies.
How to Charge 48V LiFePO4 Battery
Gather Necessary Equipment
Use a Compatible LiFePO4 Battery Charger
Use a charger specifically designed for LiFePO4 batteries. Ensure it has the correct voltage output (58.4V) and is compatible with the battery’s capacity (Ah).
Multimeter
To check the voltage of the battery before and after charging.
Safety Gear
Wear safety glasses and gloves to protect against accidental spills or short circuits.
Prepare the Charging Area
Ventilation
Ensure the charging area is well-ventilated to dissipate any gases that may be released during charging.
Clean Surface
Place the battery on a clean, non-conductive surface away from flammable materials.
Check the Battery’s State of Charge (SoC)
Before charging, check the battery’s current state of charge using a battery management system (BMS) or a voltmeter. LiFePO4 batteries operate within a voltage range of approximately:
- Fully Charged: 58.4V (3.65V per cell)
- Fully Discharged: 40V (2.5V per cell)
Avoid charging the battery if it’s already near full capacity, as overcharging can reduce its lifespan.
Connect the Charger
Turn Off the Charger
Before connecting, make sure the charger is turned off.
Connect the Charger to the Battery
Attach the positive (red) lead of the charger to the positive terminal(+) of the battery and the negative (black) lead to the negative terminal(-).
Double-Check Connections
Ensure that the connections are secure and correct to prevent short circuits. How Long will 48V 100AH Lithium Battery Last?
Power On the Charger
Once everything is connected, turn on the charger. The charging process will begin with the constant current phase.
Monitor the Charging Process
Constant Current (CC) Stage
The charger delivers a steady current to the battery until it reaches around 80-90% of its capacity. This is the fastest part of the charging process.
Constant Voltage (CV) Stage
Once the battery reaches its peak voltage (58.4V for a 48V battery), the charger switches to constant voltage mode, gradually reducing the current until the battery is fully charged.
Completion of Charging
Check Voltage
Use a multimeter to check the voltage of the battery. It should read around 58.4V when fully charged.
Disconnect the Charger
Once charging is complete, turn off the charger before disconnecting it from the battery. Remove the negative lead first, followed by the positive lead.
Safety Precautions
Avoid Overcharging
LiFePO4 batteries are sensitive to overcharging, which can cause overheating and reduce their lifespan. To prevent overcharging:
- Use a charger with an automatic cut-off feature.
- Avoid leaving the battery connected to the charger for extended periods after it’s fully charged.
- Ensure the battery’s BMS is functioning correctly, as it provides additional protection against overcharging.
Temperature Monitoring
Charge the battery in a cool, dry environment. The ideal charging temperature range for LiFePO4 batteries is 0°C to 45°C (32°F to 113°F). Avoid charging in extreme heat or cold.
Regular Maintenance
Periodically check the battery and connections for any signs of wear or damage.
Storage
If storing 48v lifepo4 battery for an extended period, charge it to around 50-60% and store it in a cool, dry place. Check the voltage every few months and recharge if necessary.

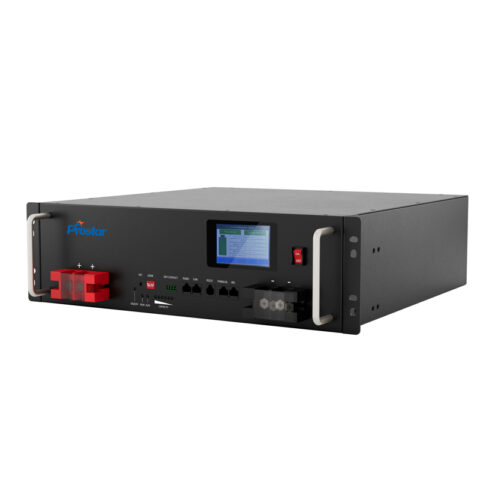

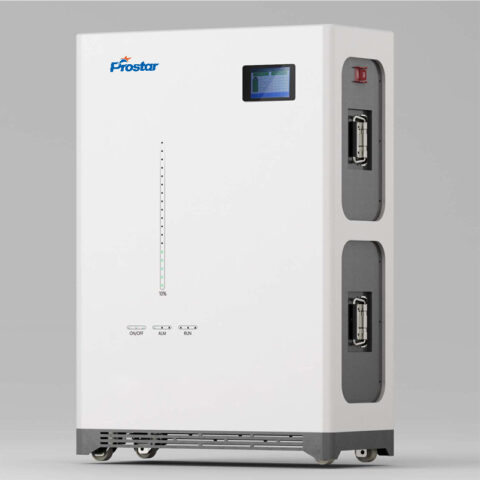

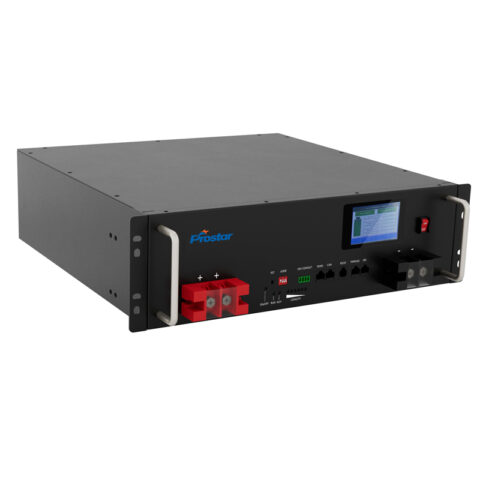

Related 48V LiFePO4 Battery
Factors to Consider When Choosing a 48V LiFePO4 Battery
When selecting a 48V Lithium Iron Phosphate (LiFePO4) battery, several factors should be considered to ensure that the battery meets your specific needs and requirements. How to Choose the Best Lithium Battery Pack for Your Needs
1. Capacity (Ah)
The capacity of a battery, measured in ampere-hours (Ah), indicates how much energy it can store and deliver over time.
Choose a capacity that aligns with your energy consumption needs. For example, if you require a battery for an electric vehicle or solar energy storage, calculate your daily energy usage to determine the appropriate capacity.
2. Discharge Rate (C-rate)
The discharge rate indicates how quickly a battery can deliver its stored energy. It is often expressed as a multiple of the battery’s capacity (e.g., 1C, 2C).
Ensure the battery can handle the required discharge rate for your application, especially if you need high bursts of power (e.g., for electric motors).
3. Cycle Life
Cycle life refers to the number of charge and discharge cycles a battery can undergo before its capacity significantly degrades.
LiFePO4 batteries typically have a longer cycle life compared to other lithium-ion batteries. Look for batteries with a cycle life of at least 2000 cycles to ensure longevity.
4. Battery Management System (BMS)
A BMS is an electronic system that manages the battery’s charging and discharging processes, ensuring safety and efficiency.
Look for batteries with a built-in BMS that provides protection against overcharging, over-discharging, short circuits, and temperature extremes.
5. Cost
The price of the battery can vary significantly based on capacity, brand, and features.
While cost is an important factor, consider the overall value, including performance, cycle life, and warranty. Sometimes, investing in a higher-quality battery can save money in the long run.
6. Compatibility
Ensure that the battery is compatible with your existing systems, such as chargers, inverters, and other components.
Check the voltage, connectors, and communication protocols to ensure seamless integration with your setup.
7. Safety Features
Safety features are critical for preventing accidents and ensuring reliable operation.
Look for batteries with features such as thermal protection, overcurrent protection, and short-circuit protection to enhance safety during operation.
