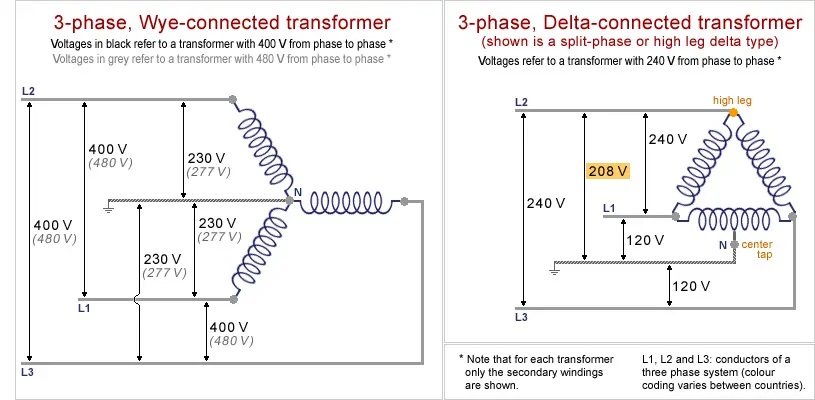

Understanding Split Phase vs 3 Phase Power Systems

Two commonly used systems in electrical power distribution are split phase vs 3 phase power when it comes to them. Each system has its own advantages and suits different applications.

Understanding the differences between these two systems is crucial for making informed decisions in both residential and industrial settings.

Split Phase Power

Residential applications predominantly use split phase power, also known as single-phase three-wire. A single-phase alternating current (AC) power supply is typically divided into two equal voltage halves by a center-tapped neutral wire. This results in two 120V AC lines, which can be combined to provide 240V AC for higher power appliances.

Advantages of Split Phase

Simplicity

The split phase system is straightforward and easy to implement, making it ideal for homes and small businesses.

Cost-Effective

The infrastructure and equipment for split phase power are generally less expensive than those for three-phase systems.

Adequate for Low Power Needs

For most residential purposes, the power provided by split phase systems is sufficient, allowing for the operation of standard household appliances.

Applications

Residential

Used in homes to power lights, outlets, and appliances such as ovens, dryers, and air conditioners.

Small Businesses

Suitable for small shops and offices where the power demand is not exceedingly high.

3 Phase Power

3 phase power is commonly used in industrial and commercial applications where a higher and more constant power supply is required. It consists of three alternating currents, each set 120 degrees out of phase with the others. This configuration provides a continuous and stable power flow, which is crucial for heavy machinery and large electrical systems.

Advantages

Efficiency

Three-phase systems are more efficient in power transmission and distribution, minimizing losses and reducing the amount of copper or aluminum required for wiring.

Stable and Reliable

The power delivery is more constant, which is essential for running large motors and sensitive equipment without interruptions.

High Power Capacity

Capable of delivering large amounts of power, making it ideal for industrial applications.

Applications of 3 Phase

Industrial

Widely used in factories, manufacturing plants, and large commercial buildings to power heavy machinery, motors, and large HVAC systems.

Commercial

Utilized in commercial buildings, data centers, and hospitals where a reliable and robust power supply is critical.

Key Differences for Split Phase vs 3 Phase

Voltage and Power Delivery

Split phase systems typically deliver 120/240V, suitable for low to moderate power requirements.

Three-phase systems deliver higher voltages, such as 208V, 220V, 480V, or even higher, catering to high power demands.

Infrastructure

Split phase requires simpler infrastructure with fewer wires, making it less complex and cheaper to install.

Three-phase requires more complex wiring and infrastructure, but the benefits in efficiency and power capacity often justify the investment.

Applications and Suitability

Split phase is ideal for residential and small business use where power needs are moderate.

Three-phase is essential for industrial and large commercial operations where continuous, high power is required.

Can You Convert 240V Single Phase to 3-phase?

Yes, it is possible to convert a 240V single-phase power supply to a 240V three-phase power supply using various methods. Here are some common techniques:

Rotary Phase Converter

A rotary phase converter uses a motor-generator set to convert single-phase power to three-phase power. It involves an idler motor and a control panel. The idler motor generates a third phase, which, combined with the existing two phases of the single-phase supply, creates a balanced three-phase power output.

Static Phase Converter

A static phase converter temporarily uses capacitors to generate a third phase to start a three-phase motor. Once the motor is running, the motor generates the third phase itself. This method is suitable for starting three-phase motors but may not provide balanced power for continuous operation.

Variable Frequency Drive (VFD)

A Variable Frequency Drive converts single-phase power to DC and then inverts it back to three-phase AC power. VFDs can also control the speed of three-phase motors by adjusting the frequency of the power supply.

Digital Phase Converter

A digital phase converter uses advanced electronics to convert single-phase power to three-phase power. It typically includes a microprocessor that controls the conversion process to ensure a balanced three-phase output.

Conclusion

Choosing between split phase vs 3 phase power systems depends on the specific needs and scale of the application. For residential settings, split phase provides a simple, cost-effective solution. In contrast, for industrial and large commercial environments, the efficiency, stability, and high power capacity of three-phase power are indispensable. Understanding these differences allows for the proper selection of a power system that best meets the operational requirements and efficiency goals.
