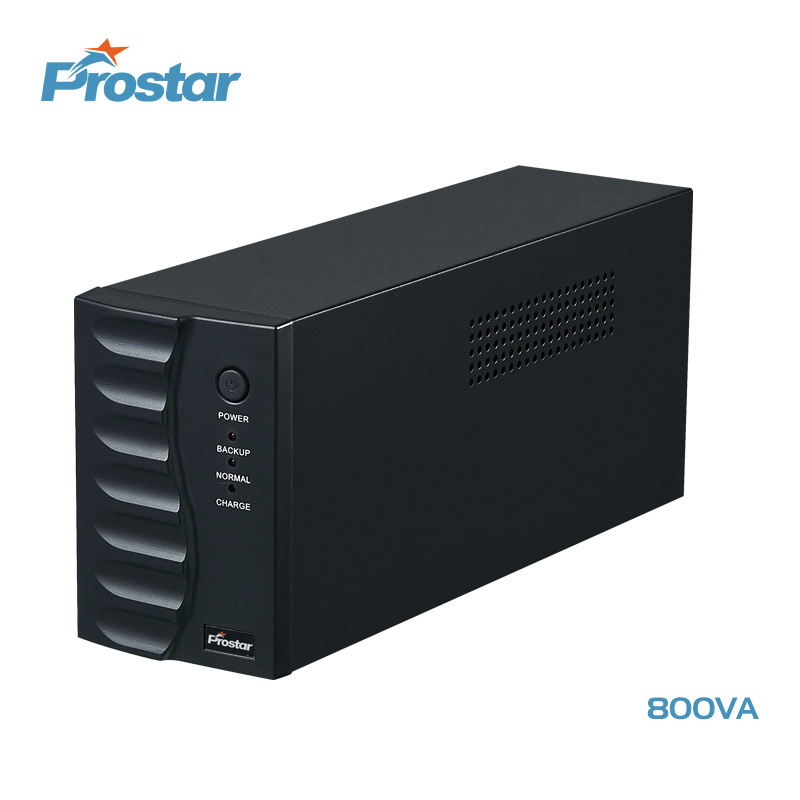

Best commercial small battery computer backup ups 800va 480w offline
Offline UPS | 800VA/480W | 1*12V9AH VRLA Battery
Prostar best commercial small battery computer backup ups 800va 480w offline provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment.
Prostar computer ups power backup 500VA – 3000VA with battery inside passes the AC Mains Supply directly to the output load if the AC Mains Supply is present. Only in the case of power failure, it switches to inverter within few miliseconds to give power to load until mains supply returns.
UPS 800VA Features
- Intelligent CPU control.
- Low power consumptions.
- High voltage protection.
- Automatic voltage regulation.
- Cold start capability allows the load to power on just on battery.
- Auto restart when mains is recovering.
- Low battery warning.
- Off-mode battery charging function.
- Compatible with low power loads e.g. wifi router, DSLmodem.
- Intelligent charging system for long battery life.
- Automatic Voltage Regulation (AVR) corrects incoming voltage.
- Built-in type and external battery models with different back-up times.
- Optional USB communication port and RS232/RJ-11/RJ-45 interface.
- Offering LED and LCD display panels for selection.
- Multi-color for choose.
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
UPS Details
Computer UPS Internal Structure
Offline UPS built-in VRLA batteries
Offline UPS Rear Panel
Prostar offline UPS package
Plug & socket types around the world
The Articles You May Like
- Which best inverter is good for home use?
- Uninterruptible Power Supply UPS Brochure
- Uninterruptible power supply – Wikipedia
- What is a lead acid battery?
- How to understand and compare solar panel specifications
- What is the difference between single phase UPS and three phase UPS?
- Prostar PSW3K-Pro 24v 3000w off grid solar inverter without battery
| Model | 800VA |
| Capacity | 800VA/480W |
| Noise | Less than 40dB (Distance 1 Meter) |
| Dimension(WxDxH mm) | 100x330x150 |
| Weight(Kgs) | 5.70 |
| INPUT | |
| Voltage | 110Vac/120Vac/128Vac or 220Vac/230Vac/240Vac |
| Voltage Range | 81Vac – 145Vac or 145Vac – 275Vac |
| Frequency | 50Hz/60Hz (Auto)±10% |
| OUTPUT | |
| Voltage | 110Vac/120Vac/128Vac or 220Vac/230Vac/240Vac ± 10% |
| Frequency | 50Hz/60Hz±1Hz |
| Wave Form | Simulated sine wave |
| Transfer Time | 4 – 6ms |
| BATTERY | |
| Type | VRLA Battery |
| Battery Number | 1 Piece |
| Battery Capacity | 12V 9AH |
| Charging Time(Standard) | 8 hours recover to 90% capacity |
| INDICATORS | |
| AC Mode | Green Lighting |
| Battery Mode | Green flash every 10 seconds |
| Fault | Red Lighting |
| Low Battery | Green Lighting every second and red lighting |
| ALARM | |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every second |
| Fault | Continuously sounding |
| SYSTEM | |
| Protection | Discharge, Short Circuit, Low Battery, Temperature and Overload |
| IP Protection | IP20 |
| Display | LED(default) or LCD optional |
| ENVIRONMENT | |
| Operating Temperature | 0℃ to 40℃ |
| Humidity | 0~95% (non-condensing) |
| Altitude | <1000m (with increase of 100m,it will reduce output of 1%) max. 4000m |
| MANAGEMENT | |
| Communication Interface | Option for RS232, USB |
| SNMP Optional | Power managemetn from SNMP manager and web browser |
