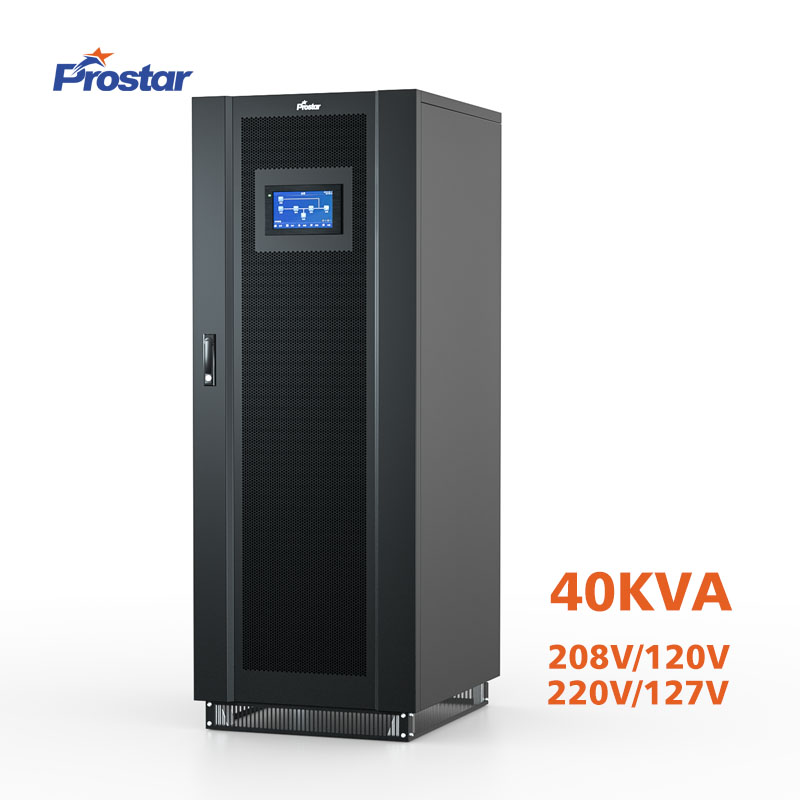

ET40KLV 3 phase 208v 40kva ups industrial uninterruptible power supply
208V 3 Phase UPS | 40KVA/32KW | OUTPUT PF 0.8 | 3P/3P | 208V-120V/220V-127V | Max. 8 units in parallel
Prostar ET40KLV 3 phase 208v 40kva ups industrial uninterruptible power supply isolates and protects against all power quality disturbances in even the most demanding environments.
ET LV 208V three-phase uninterruptible power supply delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership.
Facilities install UPS systems to prevent costly downtime and its effects from damaging their business—but without regular testing and maintenance, the backup system may fail when it’s needed most.
High efficiency in double conversion or ECO mode saves valuable energy costs and a comprehensive range of options enables 40kva ups industrial uninterruptible power supply to be highly effective in any application.
40KVA UPS Features & Benefits
1. Wide input voltage range and frequency range
Designed for harsh electrical environments to save battery life, and suitable for fuel generators or other power generation equipment.
2. Most advanced and high frequency DSP technology
High input power factor, advanced IGBT inverter technology and Digital Signal Processor (DSP) technology create low input Total Harmonic Distortion (THDi).
3. Super overload capacity
Long-time working under the load of less than 105%; switching to the bypass in 10min under the load of 105% (inclusive) to 125%; switching to the bypass output in 1min under the load of 125% (inclusive) to 150%.
4. Multi-communication Interface
It offers RS232, USB, RS485, CAN, NET, input and output dry contacts, SNMP board, WIFI board, GPRS board and 4G board to monitor the operating status of UPS.
5. Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy and share the common battery packs to reduce the cost.
6. ECO
Operating mode that ensures ultra-high efficiency while charging the batteries, conditioning the load power factor, and ensuring a Class 1 output voltage regulation.
7. Cold start and mains start without battery
In the abnormal state of the utility power, the UPS can be started directly with the battery to meet emergency needs.
There is no battery, the UPS can be started directly from the mains power.
8. Lithium-ion batteries compatible
It must be set up separately, not included in the standard configuration.
Industrial Uninterruptible Power Supply UPS Details
ET LV Series 208V Online UPS Front Panel
ET LV Series 208V UPS Real
The Articles You May Like
- How to understand the sources of power quality distrubances
- Uninterruptible Power Supply UPS Brochure
- Uninterruptible power supply – Wikipedia
- Using uninterruptible power supply systems to avoid power disruptions
- You should know the difference between ups and an inverter
- MPS120K best online modular ups 120 kva
| Model | ET40KLV |
| Capacity | 40KVA/32KW |
| Topology | Double conversion online |
| Noise | <65dBA front side 1M |
| Dimension(WxDxH mm) | 600x800x1600 |
| Weight(Kgs) | 365 |
| INPUT | |
| Input Rated Voltage | 3P + N + PE, 208Vac/220Vac(L-N: 120Vac/127Vac) |
| Input Voltage Range | 167Vac – 250Vac |
| Input Rated Frequency | 50Hz/60Hz (Auto) |
| Input Frequency Range | 40Hz – 70Hz |
| Input Power Factor | >0.95 |
| Input Current Limit | 1.25 times Rated INPUT Current (Settable 0.1 – 1.25) |
| THDI | < 3% full load |
| BYPASS INPUT | |
| Bypass Input Voltage Range | 167Vac – 250Vac |
| Bypass Input Voltage Regulation | Upper Limit: default 20% (Settable 10%/15%/20%/25%) Lower Limit: default 20% (Settable 10%/20%/30%/40%/50%/60%) |
| OUTPUT | |
| Output Rated Voltage | 3P + N + PE, 208Vac/220Vac ± 1% (L-N: 120Vac/127Vac) |
| Output Voltage Regulation | 0V(Settable ±1V- ±5V) |
| Output Frequency | Mains Mode: tracking BYPASS Input in synchronized state Battery Mode: 50Hz/60Hz±0.01% |
| Output Power Factor | 0.8 |
| Total Harmonic Distortion (THDU) | < 2% at 100% linear load; < 5% at 100% non-linear load |
| Overload Capacity | Supports up to 105% load continuously in double conversion; 105% – 110% load for 60 minutes switching to bypass output; 110% – 125% load for 10 minutes switching to bypass output; 125% – 150% load for 1 minute switching to bypass output; greater than 150% load for 200 milliseconds switching to bypass output |
| Crest Factor | 3:1 |
| Wave Form | Pure sine wave |
| Transfer Time | 0ms |
| ECO MODE | |
| Bypass Output Voltage Regulation | Upper Limit: default 5% (Settable 5%/10%/15%) Lower Limit: default 5% (Settable 5%/10%/15%) |
| Bypass Output Frequency Regulation | Default ±2Hz (Settable ±1Hz/±2Hz/±3Hz) |
| EFFICIENCY | |
| Efficiency at full load (AC-AC) | >93% |
| Efficiency at ECO Mode | >98% |
| BATTERY | |
| Battery Type | Support VRLA Battery, (Lithium-ion Battery Option) |
| Battery Voltage | Default 360Vdc (Settable 336VDC/348VDC/372VDC/384VDC) |
| Battery Charging Current | Charging Rate * Battery Capacity * Group of Battery (Settable for charging rate, battery capacity and group of battery) |
| SYSTEM | |
| Protection | Output short circuit protection, output overload protection, over-temperature protection, low battery voltage protection, output overvoltage / undervoltage protection, fan failure protection |
| IP Protection | IP30 |
| Number of Parallel | < 8 Units |
| Cooling Method | Fans |
| Display | 7-inch LCD Touch Screen |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| ENVIRONMENT | |
| Operating Temperature | 0℃ to 40℃ (32F-104F) |
| Humidity | 0~95% (non-condensing) |
| Altitude | < 1000m (Capacity de-rates by 1% for every 100m over 1000m) |
| Storage Temperature | -20℃ to 70℃ |
| COMMUNICATION | |
| Communication Interface | Default: RS232/RS485/USB/Dry Contact/EPO (Option: Battery Temperature Compensation) |
| Communication Slot | SNMP/Web interface |
