GT100K PLUS 3 phase 480v to 208v ups backup system 100kva
Industrial UPS | 100kVA / 80kW | 3 Phase | 208Vac/220Vac/480Vac | 384Vdc
Prostar GT100K PLUS 3 phase 480v to 208v ups backup system 100kva will provide seamless power protection for critical equipment and applications. With a power capacity of 100kVA, this system ensures uninterrupted power supply during outages or voltage fluctuations.
The 480v to 208v ups backup system 100kva can support demanding environments, making it ideal for data centers, industrial facilities, healthcare institutions, and large commercial operations.
This ups backup system 100kva efficiently converts 3-phase 480V input power to 208V output, ensuring compatibility with a wide range of equipment and electrical systems.
UPS Backup System 100kVA Features
IGBT Inverter Technology
IGBT technology offers high efficiency in converting DC power from the batteries to AC power for the connected loads. This helps reduce energy waste and lowers operating costs.
Voltage Conversion
This system efficiently converts 3 Phase 480V input power to 208V output power, ensuring compatibility with a wide range of equipment and devices.

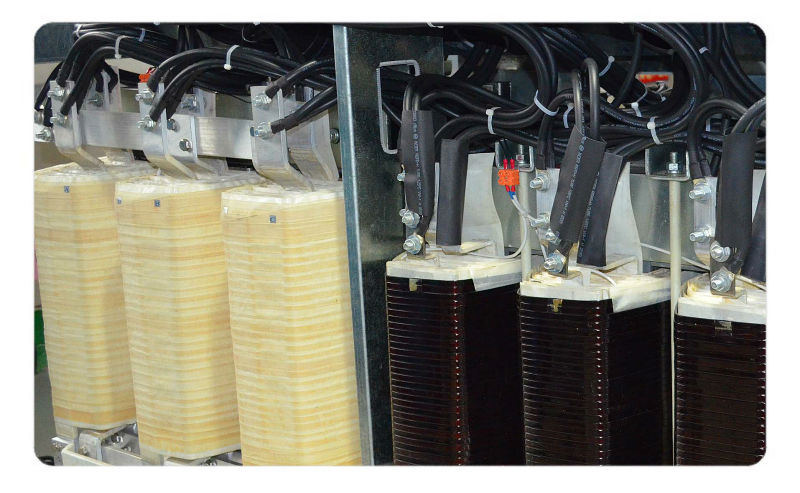

Built-in Isolation Transformer
The primary function of an isolation transformer is to provide electrical isolation between the input and output sides of the transformer. This isolation helps protect sensitive equipment from voltage spikes, noise, and other electrical disturbances present on the input power source.
Reliable Backup
The 3 phase UPS backup system provides reliable backup power, guaranteeing continuous operation of critical systems in the event of power disruptions.
Adaptive Charging
The system incorporates adaptive charging technology, which optimizes battery performance and extends battery life.
Powerful Communication System
The uninterruptible power supply ups system features a powerful communication system that allows for seamless integration with various monitoring and management tools. Users can easily monitor the UPS status, receive alerts, and manage settings remotely, enhancing operational efficiency and reliability.
Scalability and Redundancy
The system supports N+1 or N+X redundancy configurations, allowing multiple units to operate in parallel. This feature enhances reliability and allows for capacity expansion as needed.
Robust Protection
With built-in surge protection, voltage regulation, and frequency stabilization, this UPS safeguards sensitive equipment from power anomalies.

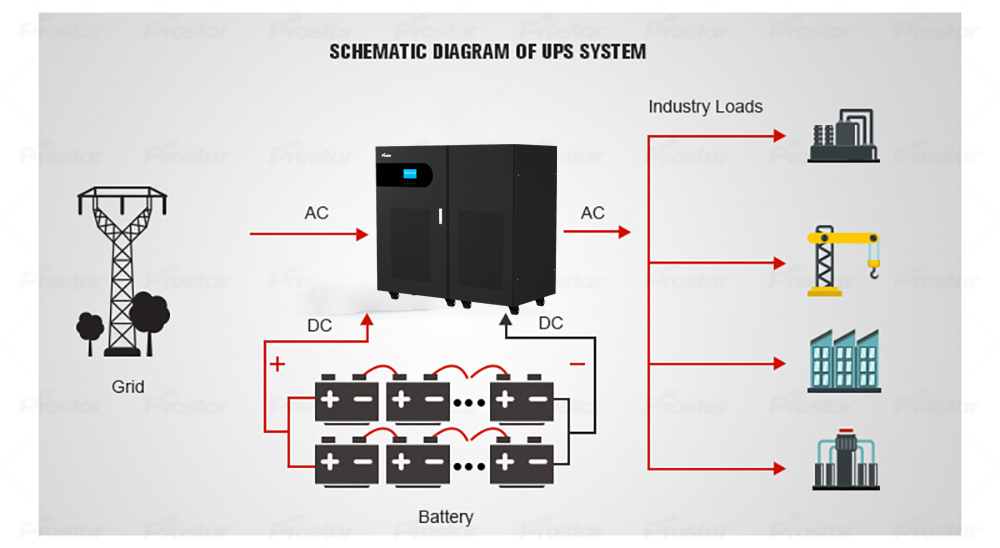

UPS Power Supply Diagram

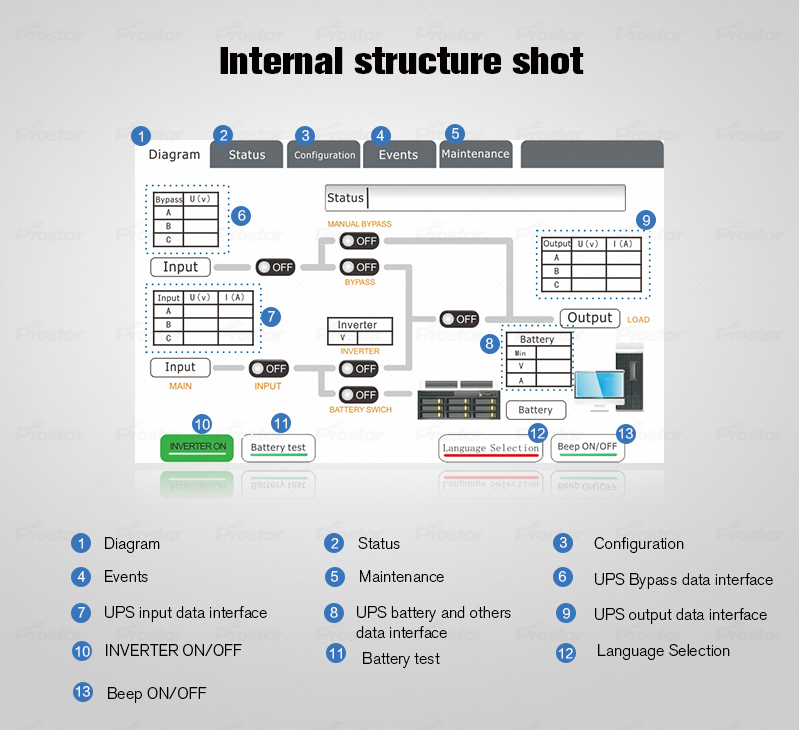

Online UPS Touch LCD Information

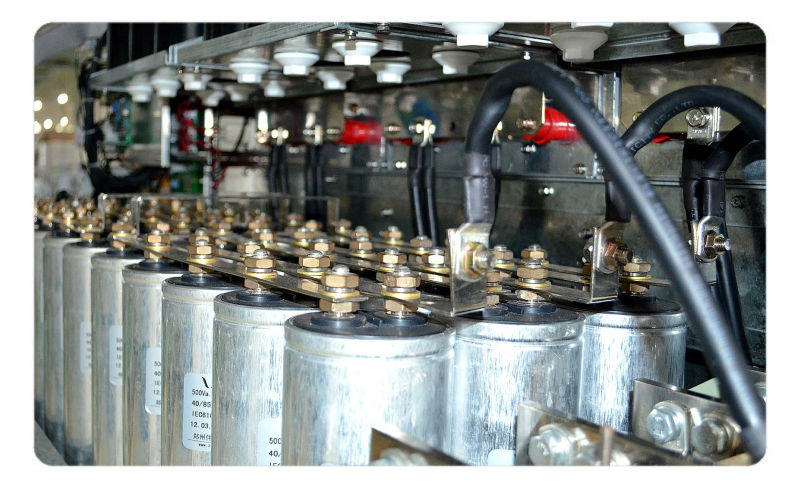

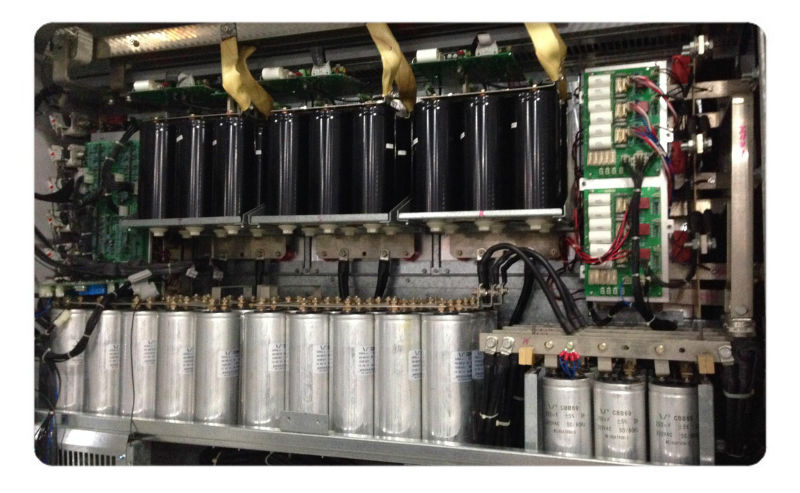

Industrial UPS System Inner Components View
Applications
The GT100K PLUS is ideal for various applications, including:
- Data centers and server rooms
- Telecommunications equipment
- Industrial automation systems
- Medical equipment and healthcare facilities
- Financial institutions and critical infrastructure
Why Choose the GT100K PLUS 100kVA UPS Backup System?
The GT100K PLUS 3-Phase 480V to 208V UPS Backup System is a trusted solution for organizations that demand uninterrupted power and superior performance. Its combination of high capacity, efficiency, and advanced features makes it an ideal choice for safeguarding critical operations against power disruptions.
The Articles You may Like
- Generator Integration with Industrial UPS Backup System
- 5 Easy Ways to Wake up Lithium Battery
- Uninterruptible power supply – Wikipedia
- The Essential Guide to Uninterruptible Power Supply for PC Systems
- 5 Essential Benefits of Uninterruptible Power Supply UPS
- What is the CT Sensor in Solar Inverter On Off Grid
| Model | GT100K PLUS |
| Capacity | 100KVA/80KW |
| UPS Efficiency | >95% |
| Noise | 54dB~65dB(Distance 1 Meter) |
| Dimension(WxDxH mm) | 1450x750x1400 |
| Weight(Kgs) | 1055 |
| INPUT | |
| Voltage | 3 Phases 4 Wires, 208Vac/220Vac/440Vac/480Vac ± 25% |
| Frequency | 50Hz/60Hz±5% (Automatically) |
| Power Factor | ≥0.95 |
| OUTPUT | |
| Voltage | 3 Phases 4 Wires, 208Vac/220Vac/440Vac/480Vac ± 1% |
| Frequency | 50Hz/60Hz±0.05%(By Battery) |
| Harmonic Distortion | Linear load<3%, Non-linear load<5% |
| Imbalance Voltage | Balance load≤1%, Imbalance load≤3% |
| Phase Shift Angle | Balance load≤1°, Imbalance load≤2° |
| Transient Response | Output at 0~50%~100% ≤5%, response ≤ 10ms |
| Overload Capacity | 110%≥300Min, 125%≥10Min, 150%≥1Min |
| Crest Factor | 3:1 |
| Wave Form | Pure sine wave |
| Transfer Time | 0ms |
| BATTERY | |
| Type | Support VRLA Battery |
| D.C. Voltage | 384Vdc |
| Max. Charging Current | 0.2AxC10 |
| Charging Time(Standard) | 12hours |
| SYSTEM | |
| Protection | Input over-voltage, under-voltage; output overload, shortcircuit; Inverter over-temperature; Battery under-voltage,over-voltage |
| IP Protection | IP20 |
| Parallel Mode | N+1,N+X,can be in parallel with different power capacity |
| Software Interface | Windows9x,2000,NT,ME,XP,Linux,Novell,Macosx,NT4.0 |
| Meantime Between Failures | 300,000Hours |
| ENVIRONMENT | |
| Operating Temperature | 0℃ to 40℃ |
| Humidity | 0~95% (non-condensing) |
| Altitude | <1000m (with increase of 100m,it will reduce output of 1%) max. 4000m |
| Storage Temperature | -25℃ to 55℃ |
| MANAGEMENT | |
| Communication Interface | RS232/RS485 |
| Remote Signaling | Dry contact (battery low,battery discharging,bypass/fault),EPO |
| Remote Control | EPO and bypass |
| SNMP Card | Power management from SNMP manager and web browser |
