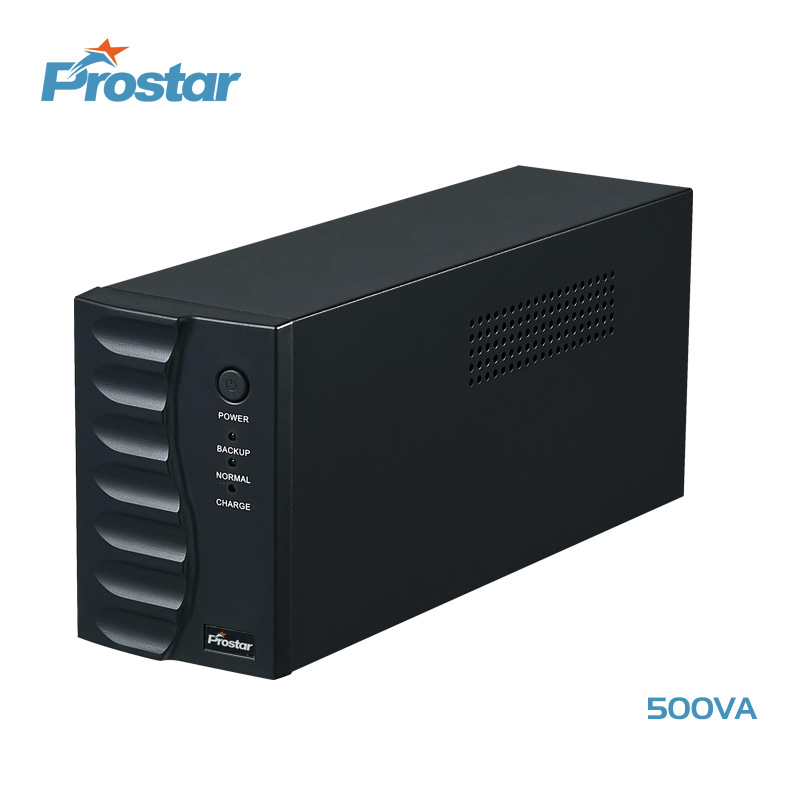

High quality led small offline computer backup ups 500va 300w 12v
Offline UPS | 500VA/300W | 1*12V4.5AH Battery
Prostar High quality led small offline computer backup ups 500va 300w 12v provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment.
Prostar computer ups power backup 500VA – 3000VA with battery inside passes the AC Mains Supply directly to the output load if the AC Mains Supply is present. Only in the case of power failure, it switches to inverter within few miliseconds to give power to load until mains supply returns.
UPS 500VA Features
- Intelligent CPU control.
- Low power consumptions.
- High voltage protection.
- Automatic voltage regulation.
- Cold start capability allows the load to power on just on battery.
- Auto restart when mains is recovering.
- Low battery warning.
- Off-mode battery charging function.
- Compatible with low power loads e.g. wifi router, DSLmodem.
- Intelligent charging system for long battery life.
- Automatic Voltage Regulation (AVR) corrects incoming voltage.
- Built-in type and external battery models with different back-up times.
- Optional USB communication port and RS232/RJ-11/RJ-45 interface.
- Offering LED and LCD display panels for selection.
- Multi-color for choose.
UPS Details
Computer UPS Internal Structure
Offline UPS built-in VRLA batteries
Offline UPS Rear Panel
Prostar offline UPS package
Plug & socket types around the world
The Articles You May Like
| Model | 500VA |
| Capacity | 500VA/300W |
| Noise | Less than 40dB (Distance 1 Meter) |
| Dimension(WxDxH mm) | 90x280x140 |
| Weight(Kgs) | 4.00 |
| INPUT | |
| Voltage | 110Vac/120Vac/128Vac or 220Vac/230Vac/240Vac |
| Voltage Range | 81Vac – 145Vac or 145Vac – 275Vac |
| Frequency | 50Hz/60Hz (Auto)±10% |
| OUTPUT | |
| Voltage | 110Vac/120Vac/128Vac or 220Vac/230Vac/240Vac ± 10% |
| Frequency | 50Hz/60Hz±1Hz |
| Wave Form | Simulated sine wave |
| Transfer Time | 4 – 6ms |
| BATTERY | |
| Type | VRLA Battery |
| Battery Number | 1 Piece |
| Battery Capacity | 12V 4.5AH |
| Charging Time(Standard) | 8 hours recover to 90% capacity |
| INDICATORS | |
| AC Mode | Green Lighting |
| Battery Mode | Green flash every 10 seconds |
| Fault | Red Lighting |
| Low Battery | Green Lighting every second and red lighting |
| ALARM | |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every second |
| Fault | Continuously sounding |
| SYSTEM | |
| Protection | Discharge, Short Circuit, Low Battery, Temperature and Overload |
| IP Protection | IP20 |
| Display | LED(default) or LCD optional |
| ENVIRONMENT | |
| Operating Temperature | 0℃ to 40℃ |
| Humidity | 0~95% (non-condensing) |
| Altitude | <1000m (with increase of 100m,it will reduce output of 1%) max. 4000m |
| MANAGEMENT | |
| Communication Interface | Option for RS232, USB |
| SNMP Optional | Power managemetn from SNMP manager and web browser |
