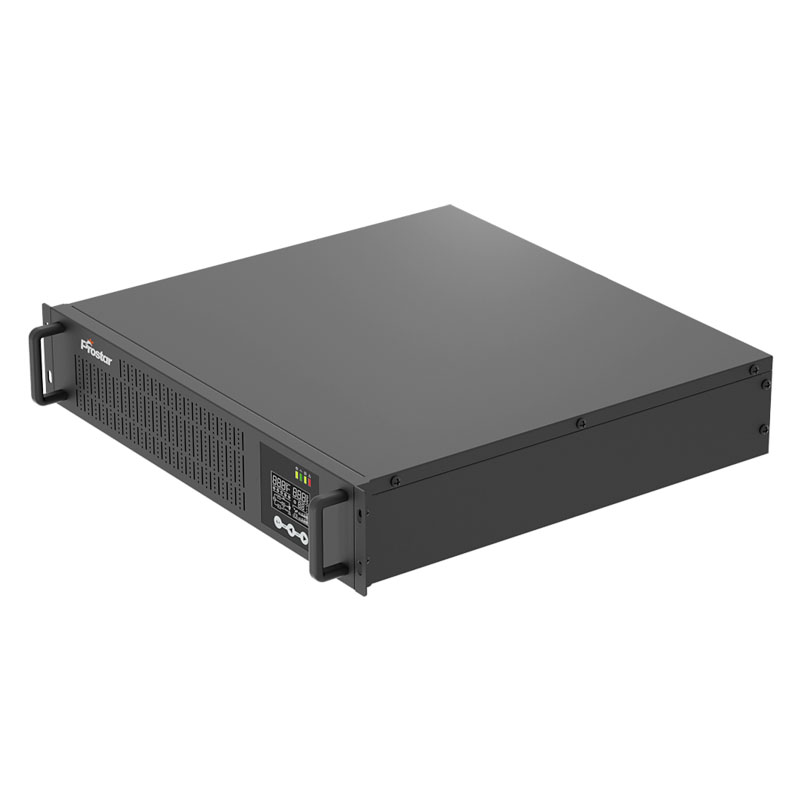

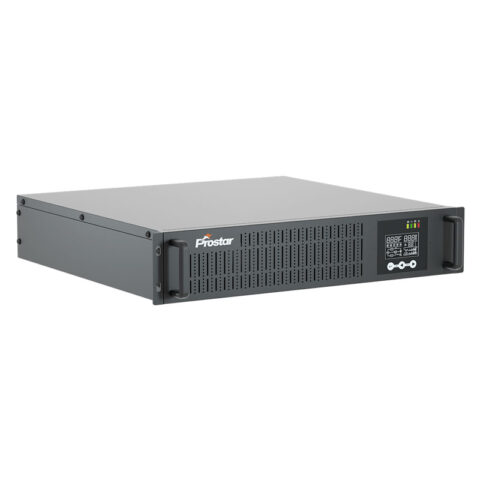

PER1102B 2U single phase 2kva rack mount 48v ups battery backup

Rack Mount UPS | 2kVA/2kW | PF 1.0 | 48Vdc | 208V/220V/230V/240V | 4x12V7AH UPS battery

SKU: PER1102B Category:

Prostar PER1102B 2U single phase 2kva rack mount 48v ups battery backup can equalize the voltage of each individual battery, getting the most out of it..

PER1102B 2kva rack mount 48v ups battery backup adopts advanced technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs.

The ECO and frequency inverter operation modes highlight the requirements for a modern versatile UPS.

The PF1.0 rack mount ups provides Pure Sine Wave power output for sensitive equipment that requires smoother and cleaner input source.

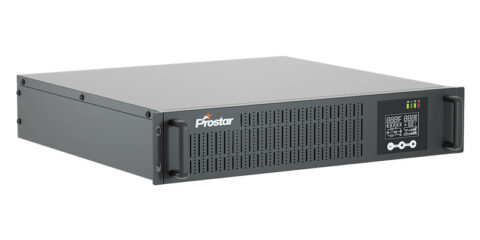

Prostar Rack Mount Online UPS 1KVA - 3KVA

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

2KVA Rack Mount 48V UPS Features

  • True double conversion
  • Microprocessor control optimizes reliability
  • DSP technology guarantees high performance
  • Input power factor correction
  • Output power factor 1
  • Extremely wide input voltage window of 110 VAC to 300 VAC
  • High efficiency up to 95.5%
  • 50Hz/60Hz frequency converter mode
  • ECO mode for energy saving
  • Emergency power off (EPO) function
  • Graphic LCD display with interactive multilingual user interface
  • Adjustable charging current via LCD panel
  • Adjustable charging mode with two stages or three stages
  • Programmable output voltage
  • Cold start by battery without grid input
  • Smart battery charging technology for maximum durability of the battery
  • Generator compatible
  • Extension slot for SNMP

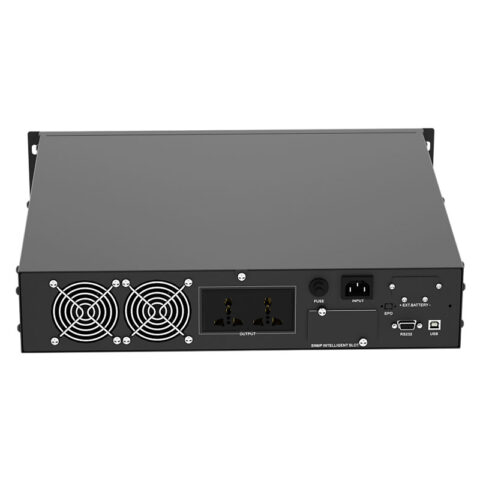

Rack Mount UPS Rear Panel

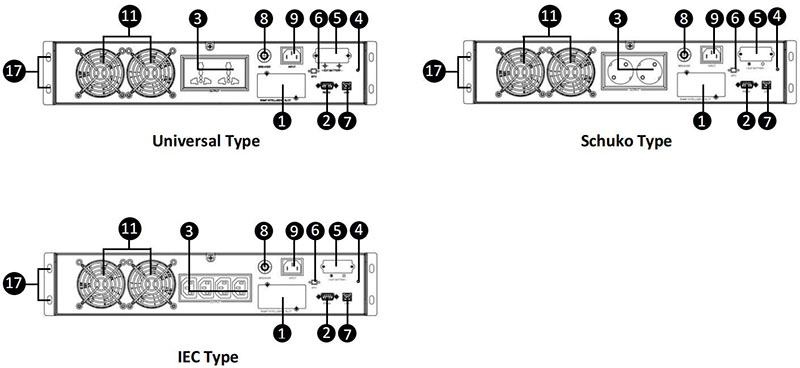

Rack Mount UPS 2KVA 2KW with Battery Backup Rear Details

1.Smart slot                                                                               10.Maintenance bypass switch (option)
2.RS-232 port                                                                           11.Cooling fan
3.Output receptacles                                                               12.AC Input terminal
4.Ground terminal                                                                   13.AC Output terminal
5.External battery connector                                                 14.AC Input/Output terminal
6.Emergency power off connector (option)                             15.Battery pack output circuit breaker
7.USB port                                                                                 16.Battery bank
8.Input circuit breaker                                                               17.Rack mount hole
9.AC Input socket                                                                     18.Parallel operation port (option)

2U Rack Mount UPS Highligh

Prostar PER Rack Mount Online UPS Efficiency

Prostar Rack Mount Online UPS EPO

Prostar Rack Mount Online UPS Multiple Protection

2KVA Rack Mount Online UPS Details

PER1102B 2U single phase 2kva rack mount online ups battery backup

PER1102B 2U single phase 2kva rack mount online ups battery backup

PER1102B 2U single phase 2kva rack mount online ups battery backup

UPS Power Supply FAQ

  1. Can UPS battery leak?

    It’s very rare, but there is a possibility of electrolyte leakage from inside of lead acid batteries by such as manufacturing defects. If leakage from battery occurs, a ground fault accident occurs, and may cause serious accidents.

  2. What is a UPS Tower?

    An uninterruptible power supply (UPS) is an electrical setup that provides power backup when the main power source fails. It is commonly used to protect hardware such as computers, telecommunication equipment, and other sensitive electronics.

  3. What is the difference between a PDU and a UPS?

    PDUs merely distribute power. They do not generate it. UPSs are essentially backup batteries in the server rack. They provide backup power in the event of an outage and complete protection against power quality problems.

The Articles You may Like

MODEL PER1102B
CAPACITY 2000VA / 2000W
Battery Voltage 48VDC
Size, D X W X H (mm) 440x420x88
Net Weight (kgs) 17
INPUT
Nominal Voltage 208/220/230/240VAC
Input Voltage Range 110-300VAC
Frequency Range 50Hz:44Hz~56Hz or 60Hz:54Hz~66Hz
Phase Single Phase, L+N+PE
Power Factor ≧ 0.99 @ nominal voltage (input voltage)
Harmonic Distortion ≤4% (Linear Load), ≤5% (Non-linear Load)
OUTPUT
Output voltage 208/220/230/240VAC
AC Voltage Regulation ± 1% (Batt. Mode)
Frequency Range(Line Mode) Synchronized range
Frequency Range (Batt. Mode) 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
Overload Capacity 30mins @102%-110% load
10mins @110%-130% load
30sec @130%-150% load
200ms @>150% load
Current Crest Ratio 3:1
Harmonic Distortion ≦3% THD (Linear Load);≦6% THD (Non-linear Load)
Transfer Time AC Mode to Battery Mode 0ms
Inverter to Bypass 4ms
Waveform (Batt. Mode) Pure Sine Wave
EFFICIENCY
AC Mode 95.5%
Battery Mode 91.5%
BATTERY
Battery Type 12V 7AH Lead Acid Battery
Battery Numbers 4 PCS
Charging Current 1A(Default), 1A-4A adjustable
Charging Voltage 54VDC ± 1%
Charging Mode 2-stage(CC/ Floating) or 3-stage (CC/CV/Floating)
INDICATORS
LCD Panel Load level, Battery level, AC mode, Battery mode, Bypass mode,and Fault conditions
ENVIRONMENT
Ambient temperature 0- 40°C
Operation Humidity 5%-95% (non-condensing)
Storage temperature -15~60℃ (no battery inside)
Altitude <1000m ( the height above 1000m should be reduced to a maximum of 4000m.)
Noise Level Less than 50dBA @ 1 Meter
COMMUNICATION
Communication Interface Standard: RS232, USB; Option: Dry contact, EPO
Smart Slot Optional SNMP Card
