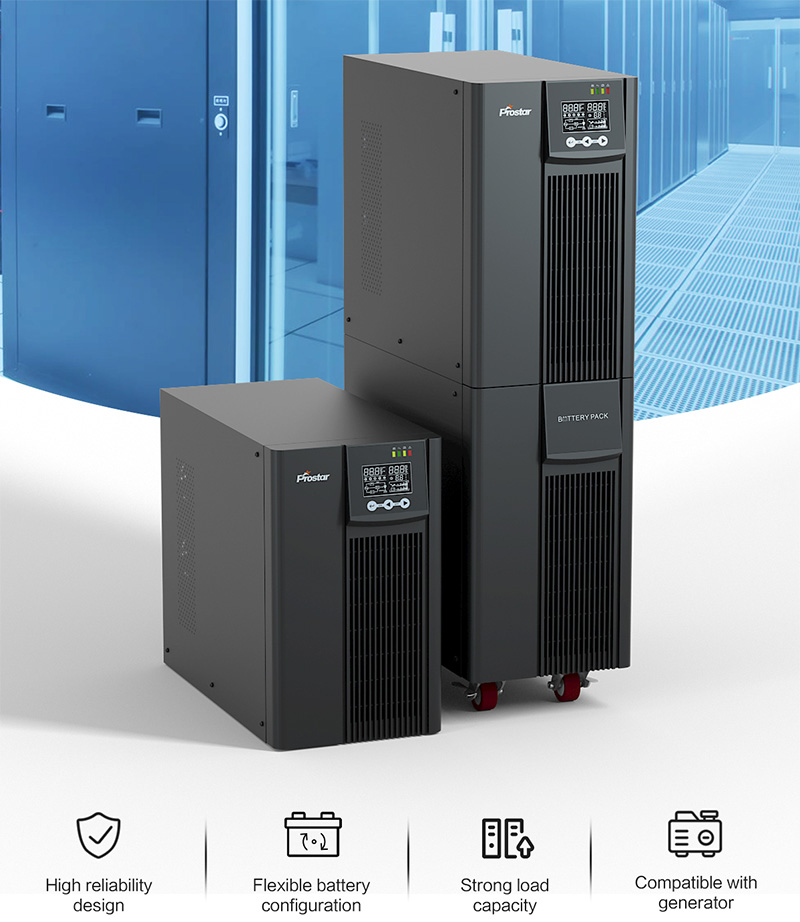

PET1106 single phase 6kva online ups uninterruptible power supply
Double Conversion UPS | 6KVA / 6KW | 192Vdc | 208V/220V/230V/240V | Without battery inside
Prostar PET1106 single phase 6kva online ups uninterruptible power supply protects your mission critical applications from downtime, data loss.
PET1106 single phase 6KVA online UPS is designed to fit perfectly into any given environment where uninterrupted power feed is required to secure and ensure continuous operations.
POWERONE UPS provides early-warning fault analysis on batteries enabling timely preventive maintenance. It Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
The single phase 6kVA Online UPS is a highly advanced Uninterruptible Power Supply (UPS) system designed for critical power protection in various applications. This UPS provides clean and continuous power to connected loads, even during power outages, brownouts, or surges, ensuring uninterrupted operation and preventing data loss or equipment damage.
6KVA Online UPS Features
- True double conversion
- Microprocessor control optimizes reliability
- DSP technology guarantees high performance
- Sinus shaped power feed (high-frequency pulse width modulation with IGBTs)
- Input power factor correction
- Unity power factor output with 20-Battery Option
- Extremely wide input voltage window of 110 VAC to 300 VAC
- High efficiency up to 95.5%
- 50Hz/60Hz frequency converter mode
- ECO and frequency operating voltage possibilities
- Emergency power off (EPO) function
- Graphic LCD display with interactive multilingual user interface
- Select battery numbers
- Adjustable charging current/charging mode via LCD panel
- Charger capacity expansion to 12A for long-run models
- Programmable output voltage
- Cold start by battery without grid Input
- Smart battery charger design to optimize battery performance
- Generator compatible
- Extension slot for SNMP, potential-free contacts, remote panel
- Common battery for parallel operation
- Optional N+X parallel redundancy and performance increase
- Optional manual maintenance bypass switch
Online UPS Highlight

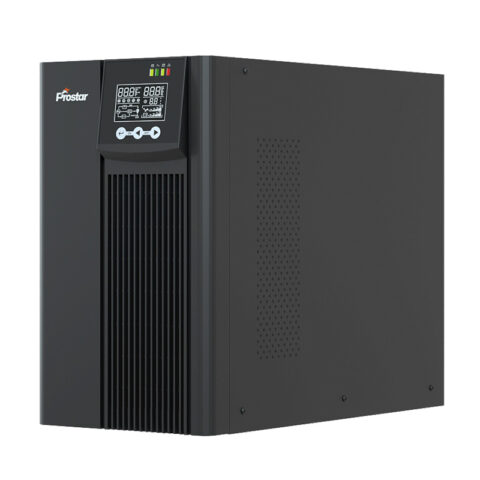

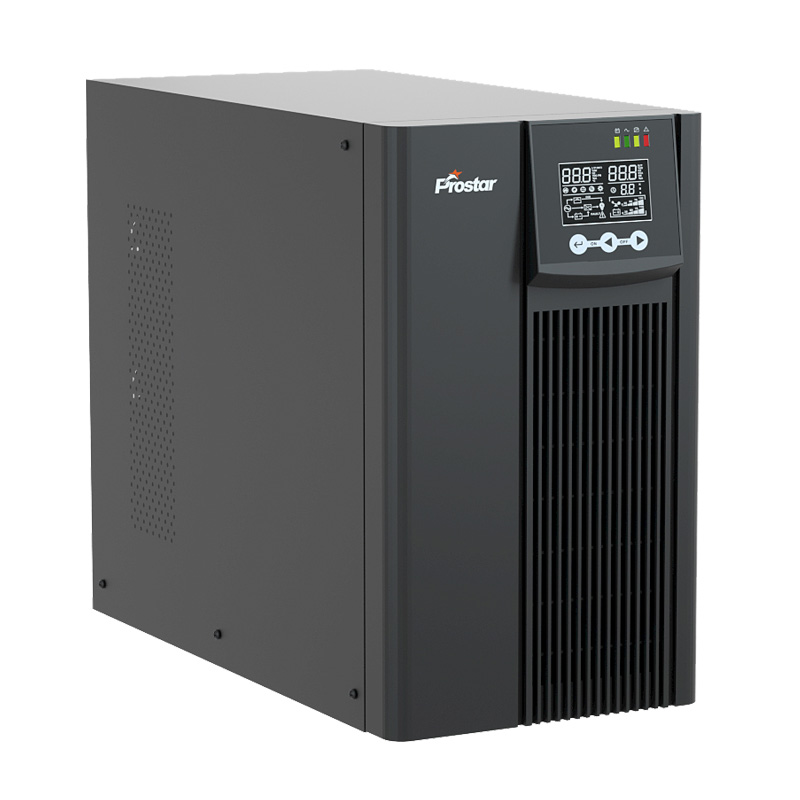

Online UPS 6KVA Details

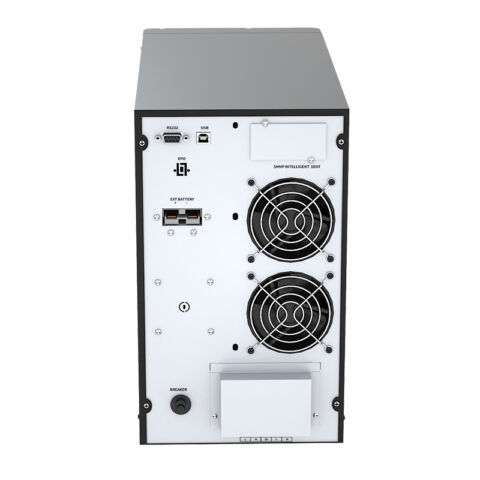

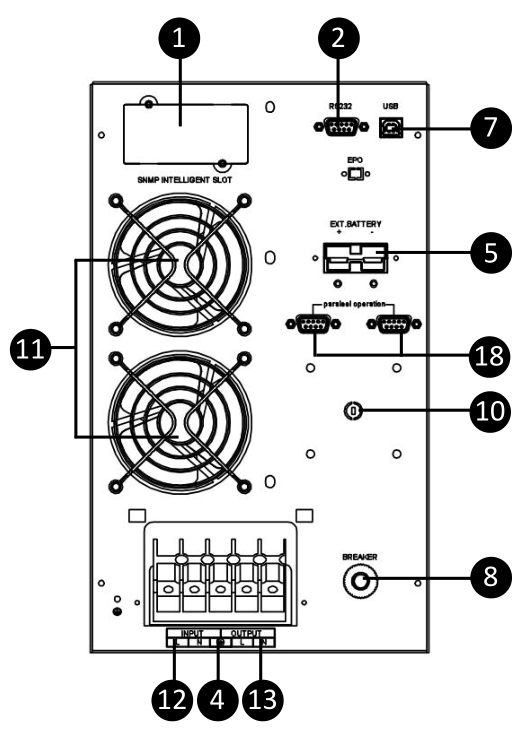

HF Online UPS 6KVA Rear
Uninterruptible Power Supply FAQ
-
Where is a UPS used?
UPS systems can be used anywhere that needs to ensure that the power keeps on following. The most common applications are where power is critical to avoid infrastructure damage, like in a data centre or manufacturing facility.
-
Can I use my UPS with a generator?
If the UPS receives power from a motor-powered AC generator, the generator must provide clean, filtered, computer-grade output. Consult your generator’s manual to see if it meets these specifications.
-
How should I choose a UPS?
You need to make a note of the number of gadgets that need to function in the eventuality of a power cut, and the battery backup power requirement. Additional battery capacity should always be planned keeping future expansion in mind. These pointers will help you choose the right UPS for your ideal backup power supply requirement.
The Articles You may Like
- Using uninterruptible power supply systems to avoid power disruptions
- Chooce your best value mppt solar charge controller
- Can hybrid inverter work without battery
- How to understand the sources of power quality distrubances
- What is difference between offline UPS and online UPS?
- MPS120K best online modular ups 120 kva
| MODEL | PET1106 | |
| CAPACITY | 6000VA / 6000W | |
| Battery Voltage | 192VDC | |
| Size, D X W X H (mm) | 395 X 190 X 330 | |
| Net Weight (kgs) | 15 | |
| INPUT | ||
| Norminal Voltage | 208/220/230/240VAC | |
| Input Voltage Range | 110-300VAC | |
| Frequency Range | 50Hz:44Hz~56Hz or 60Hz:54Hz~66Hz | |
| Phase | Single Phase, L+N+PE | |
| Power Factor | ≧ 0.99 | |
| Harmonic Distortion | ≤5% (Linear Load), ≤8% (Non-linear Load) | |
| OUTPUT | ||
| Output voltage | 208/220/230/240VAC | |
| AC Voltage Regulation | ± 1% (Batt. Mode) | |
| Frequency Range(Line Mode) | Synchronized range | |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1% | |
| Overload Capacity | AC Mode: Battery Mode: 30mins @102%-110% load 10mins @102%-110% load 10mins @110%-130% load 1min @110%-130% load 30sec @130%-150% load 10sec @110%-130% load 500ms @>150% load 500ms @>150% load |
|
| Current Crest Ratio | 3:1 | |
| Harmonic Distortion | ≦2% THD (Linear Load);≦5% THD (Non-linear Load) | |
| Transfer Time | AC Mode to Battery Mode | 0ms |
| Inverter to Bypass | 0ms | |
| Waveform (Batt. Mode) | Pure Sine Wave | |
| EFFICIENCY | ||
| AC Mode | 95.5% | |
| Battery Mode | 95.3%(192VDC), 94.8%(240VDC) | |
| BATTERY | ||
| Battery Type | Depending on applications | |
| Battery Numbers | 16-20PCS | |
| Charging Current | 5A(Default),1A-12A adjustable | |
| Charging Voltage | 219.2VDC ± 1% / 274.0VDC ± 1% | |
| Charging Mode | 2-stage or 3-stage | |
| INDICATORS | ||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault condictions | |
| ENVIRONMENT | ||
| Ambient temperature | 0- 40°C | |
| Operation Humidity | 20%-95% (non-condensing) | |
| Storage temperature | -15~60℃ (no battery inside) | |
| Altitude | <1000m ( the height above 1000m should be reduced to a maximum of 4000m.) | |
| Noise Level | Less than 55dBA @ 1 Meter | |
| COMMUNICATION | ||
| Communication Inteface | Standard: RS232, USB; Option: Dry contact, EPO | |
| Smart Slot | Optional SNMP Card | |
