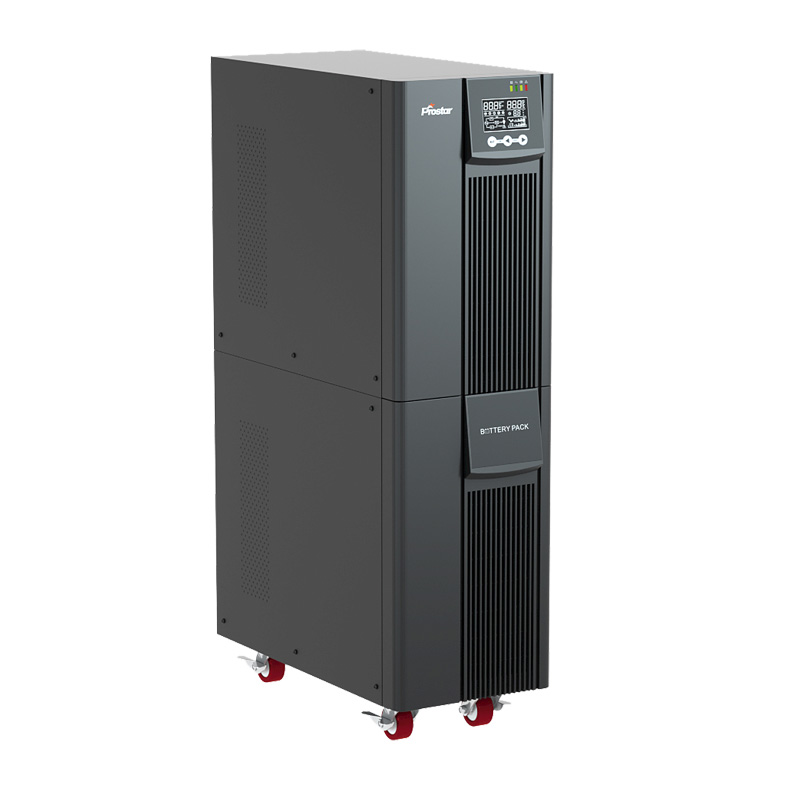

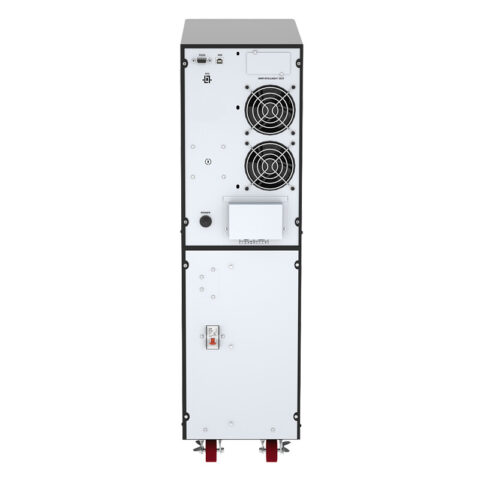

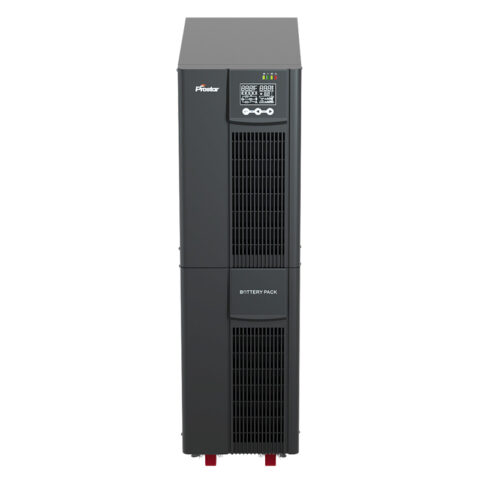

PET1110B best online 10kva ups battery backup power supply for home
Double Conversion UPS | 10KVA / 10KW | 192Vdc | 208V/220V/230V/240V | Built-in 16 x12V7AH UPS battery
Prostar PET1110B best online 10kva ups battery backup power supply for home offers complete power protection for critical server, network and telecommunications.
PET1110B 10kva ups battery backup power supply offers complete power protection for critical network applications.
Single Phase 10kVA Online UPS is a reliable and efficient power protection solution that ensures uninterrupted power supply to your critical equipment. With its high capacity, user-friendly interface, and double conversion technology, it is an ideal choice for businesses and organizations that require a robust and dependable power backup system.
10KVA UPS Features
- IGBT based rectifier true online double conversion
- Microprocessor control optimizes reliability
- DSP technology guarantees high performance
- Pure sine wave output
- Higher power density
- Input power factor correction
- Unity output power factor (kVA = kW)
- Extremely wide input voltage window of 110 VAC to 300 VAC
- 50Hz/60Hz frequency converter mode
- ECO and frequency operating voltage possibilities
- Graphic LCD display with interactive multilingual user interface
- Digital charger technology provides 0-4A charging current
- Adjustable charging current/charging mode via LCD panel
- Built-in 16PCS 12V 7AH lead acid battery
- Programmable output voltage
- Cold start by battery without grid Input
- Generator compatible
- Parallel operation upto 3 UPS’s
- Extension slot for SNMP, potential-free contacts, remote panel
UPS Power Supply Highlight
Online UPS 10KVA Details
UPS FAQ
-
What is the meaning of backup power?
Backup power is a term that simply means, a source of power if the mains power fails. This can be anything from some batteries in your mains powered alarm clock to UPS system and standby generator that are connected to your data centre.
-
How can I monitor the temperature and humidity around the UPS?
An external environmental sensor will provide you with all information regarding the temperature and humidity around the UPS. You could access the same via the SNMP/ Network card.
-
Can I use a UPS for 5-6 hours?
If the power requirement is low and the UPS is overrated, possibly, but normally running a UPS for this long requires so many UPS batteries it becomes unfeasible both financial and physically. It would be best to run a standby generator alongside your UPS to achieve this.
The Articles You may Like
| MODEL | PET1110B | |
| CAPACITY | 10000VA / 10000W | |
| Battery Voltage | 192VDC | |
| Size, D X W X H (mm) | 475 X 190 X 696 | |
| Net Weight (kgs) | 53 | |
| INPUT | ||
| Norminal Voltage | 208/220/230/240VAC | |
| Input Voltage Range | 110-300VAC | |
| Frequency Range | 50Hz:44Hz~56Hz or 60Hz:54Hz~66Hz | |
| Phase | Single Phase, L+N+PE | |
| Power Factor | ≧ 0.99 | |
| Harmonic Distortion | ≤5% (Linear Load), ≤8% (Non-linear Load) | |
| OUTPUT | ||
| Output voltage | 208/220/230/240VAC | |
| AC Voltage Regulation | ± 1% (Batt. Mode) | |
| Frequency Range(Line Mode) | Synchronized range | |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1% | |
| Overload Capacity | AC Mode: Battery Mode: 30mins @102%-110% load 10mins @102%-110% load 10mins @110%-130% load 1min @110%-130% load 30sec @130%-150% load 10sec @110%-130% load 500ms @>150% load 500ms @>150% load |
|
| Current Crest Ratio | 3:1 | |
| Harmonic Distortion | ≦2% THD (Linear Load);≦5% THD (Non-linear Load) | |
| Transfer Time | AC Mode to Battery Mode | 0ms |
| Inverter to Bypass | 0ms | |
| Waveform (Batt. Mode) | Pure Sine Wave | |
| EFFICIENCY | ||
| AC Mode | 95.5% | |
| Battery Mode | 95.3% | |
| BATTERY | ||
| Battery Type | Sealed Maintenance-free | |
| Battery Numbers | 16PCS x 12V7AH | |
| Charging Current | 1A(Default),1A-4A adjustable | |
| Charging Voltage | 219.2VDC ± 1% | |
| Charging Mode | 2-stage or 3-stage | |
| INDICATORS | ||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault condictions | |
| ENVIRONMENT | ||
| Ambient temperature | 0- 40°C | |
| Operation Humidity | 20%-95% (non-condensing) | |
| Storage temperature | -15~60℃ (no battery inside) | |
| Altitude | <1000m ( the height above 1000m should be reduced to a maximum of 4000m.) | |
| Noise Level | Less than 50dBA @ 1 Meter | |
| COMMUNICATION | ||
| Communication Inteface | Standard: RS232, USB; Option: Dry contact, EPO | |
| Smart Slot | Optional SNMP Card | |
