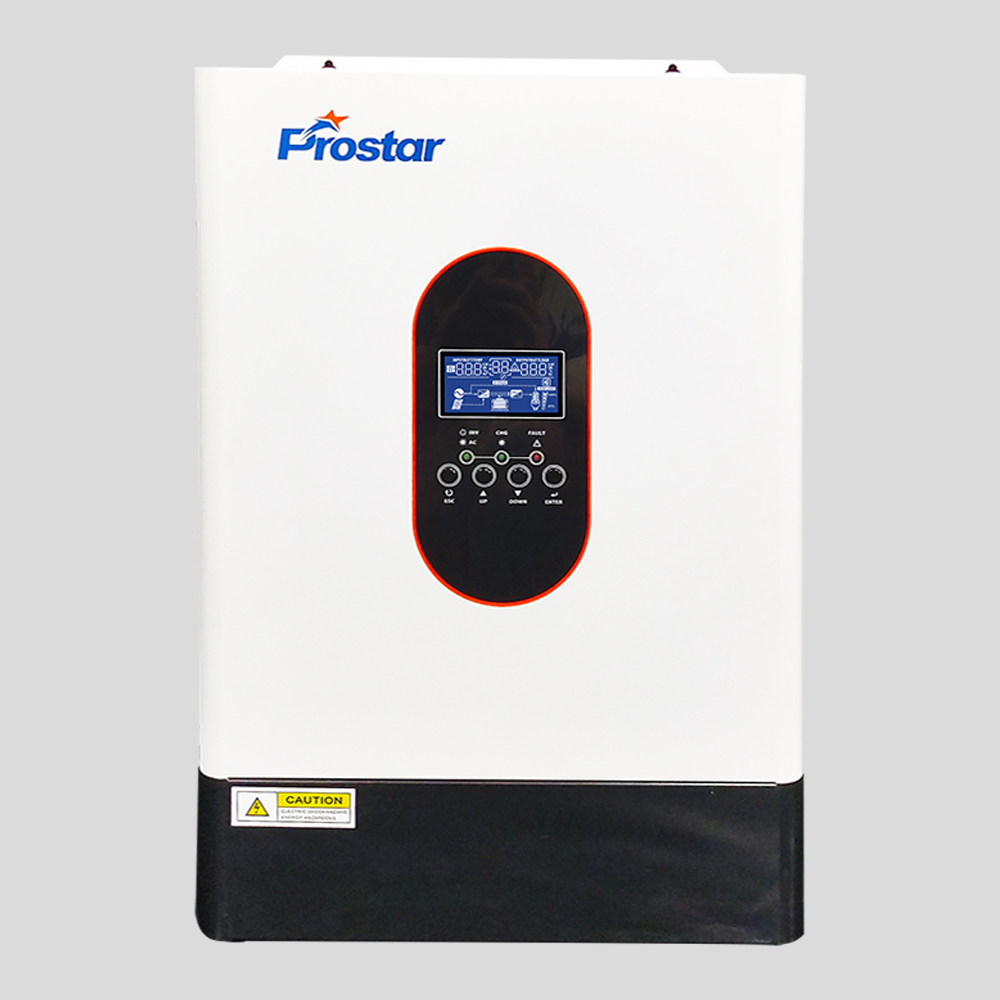

PHS5.5K-48PL single phase on off grid 48v hybrid inverter 5500w is offering both on-grid and off-grid functionality. This 48V hybrid inverter can use for residential and commercial applications that require reliable power supply solutions. It integrates seamlessly with renewable energy sources to meet those needs.
The inverter’s hybrid design allows it to operate both on-grid and off-grid, giving users the flexibility to switch between the two modes as needed. When connected to the grid, it can provide backup power during outages, ensuring a continuous supply of electricity. In off-grid mode, it relies solely on solar power, making it an excellent choice for remote locations or areas with unreliable grid connections.
48V Hybrid Inverter 5500W Features
Pure Sine Wave Output
The hybrid inverter ensures a stable and reliable power supply with its pure sine wave output, providing clean energy for your electronic devices.
Efficient MPPT Solar Controller
Equipped with a built-in 100A MPPT solar controller, the off-grid power inverter boasts high efficiency in converting solar power into usable energy, optimizing your system’s overall performance.
Programmable Multiple Operations
Offers flexibility with multiple operating modes including Grid Tie, Off Grid, and Grid-tie with Backup, allowing customization to suit specific energy needs.
LCD Display Panel
Provides comprehensive information at a glance, allowing users to monitor system performance and parameters easily.
User-adjustable Battery Charging Current and Voltage
Allows customization of battery charging parameters for optimal battery health and performance.
Self-consumption and Feed-in to the Grid
Maximizes self-consumption of solar energy while enabling excess energy to be fed back into the grid.
Programmable Supply Priority
Offers flexibility in power source prioritization between PV, Battery, or Grid, ensuring efficient energy utilization.
Reserve Communication Interface for BMS
Facilitates integration with Battery Management Systems for enhanced control and monitoring capabilities.
Built-in Lithium Battery Automatic Activation
Streamlines the setup process and ensures compatibility with lithium batteries.
ON/OFF GRID Solar Inverter Details
Connection CT
In this operational mode, the hybrid inverter is designed to supply power to both the backup load and the regular home load simultaneously. In scenarios where the photovoltaic (PV) system does not generate sufficient power, the inverter will supplement the energy needs by drawing from the grid. Notably, the inverter is configured not to export any excess power back to the grid. To achieve this functionality, a current transformer (CT) is employed. The external CT monitors the power flow and ensures that the inverter’s output is adjusted so that it only meets the demands of the local loads, including battery charging and powering home appliances, without exporting surplus power to the grid.
Choose the Right Working Mode
Programmable multiple operations in a solar inverter typically refer to the ability to switch between different operating modes based on your needs or the prevailing conditions. Here’s how these modes typically work:
Grid-tie mode: In this mode, the solar inverter synchronizes its output with the utility grid. It feeds solar-generated electricity directly into the grid to power your home or business. If your solar system generates more electricity than you’re currently using, you can export the excess power to the grid and may receive credits or compensation for it, depending on local regulations.
Off-grid mode: In off-grid mode, the solar inverter operates independently of the utility grid. It converts solar energy into usable AC power for your home or business and charges a battery bank for energy storage. This mode is useful in areas where there’s no access to the grid or for providing backup power during grid outages.
Grid-tie with backup mode: This mode combines the features of both grid-tie and off-grid operations. The solar inverter prioritizes using solar energy to power your home or business. If the solar energy isn’t sufficient to meet your demand, it supplements it with electricity from the grid. Additionally, excess solar energy can be stored in a battery bank for backup power during grid outages or periods of low solar generation.
Hybrid Solar Inverter Parallel Function
Single Phase in Parallel Operation
Three Phase in Parallel Operation
