PIE11K-48L single phase 11kw dc to ac off grid inverter hybrid solar
Off Grid Hybrid Solar Inverter | 11KW | 48V | 220Vac/230Vac | MPPT 160A | 2 PV Inputs
Prostar PIE11K-48L single phase 11kw dc to ac off grid inverter hybrid solar delivers highly efficient power conversion for a wide range of off-grid solar applications.
The single phase 11kw dc to ac off grid inverter combines solar energy, battery storage, and grid backup capabilities in one seamless system, allowing users to harness the maximum potential of renewable energy. It efficiently manages the power flow between solar panels, batteries, and load demands.
Hybrid off grid inverter 11kw supports a wide range of PV input voltages, from 60V to 500V DC, allowing flexible solar panel configurations and ensuring that the system operates efficiently even in varying weather conditions.
This inverter operates off-grid, meaning it doesn’t rely on a utility power grid. It ensures continuous power for homes or businesses in remote areas or places where grid power is unavailable or unreliable.
Off Grid Inverter 11KW Feautures
Pure Sine Wave Output
The device provides a pure sine wave output, delivering smooth and stable power that ensures compatibility with sensitive electronic devices, protecting them from potential damage caused by unstable power sources.
Dual PV Inputs
The dual PV input design allows for two separate solar array inputs, making the system more versatile and adaptable to different panel configurations. This enables efficient management of solar energy and allows for easier system expansion in the future.
Built-in 160A MPPT Solar Controller
The integrated 160A Maximum Power Point Tracking (MPPT) solar controller optimizes the solar energy harvesting process, ensuring maximum efficiency in converting sunlight into electricity.
Lithium Battery Activation
The inverter features a lithium battery activation function, providing optimal charging and discharging cycles for lithium-ion batteries, prolonging their lifespan, and ensuring safe operation.
Reserved Communication Port for BMS (RS485)
The solar inverter charger is equipped with a reserved communication port for Battery Management System (BMS) connectivity via RS485, allowing for efficient monitoring and control of the battery system.
Battery Equalization Function
The inverter features a built-in battery equalization function that helps maintain battery health by balancing charge levels across all cells, preventing overcharging and ensuring longer battery lifespan.

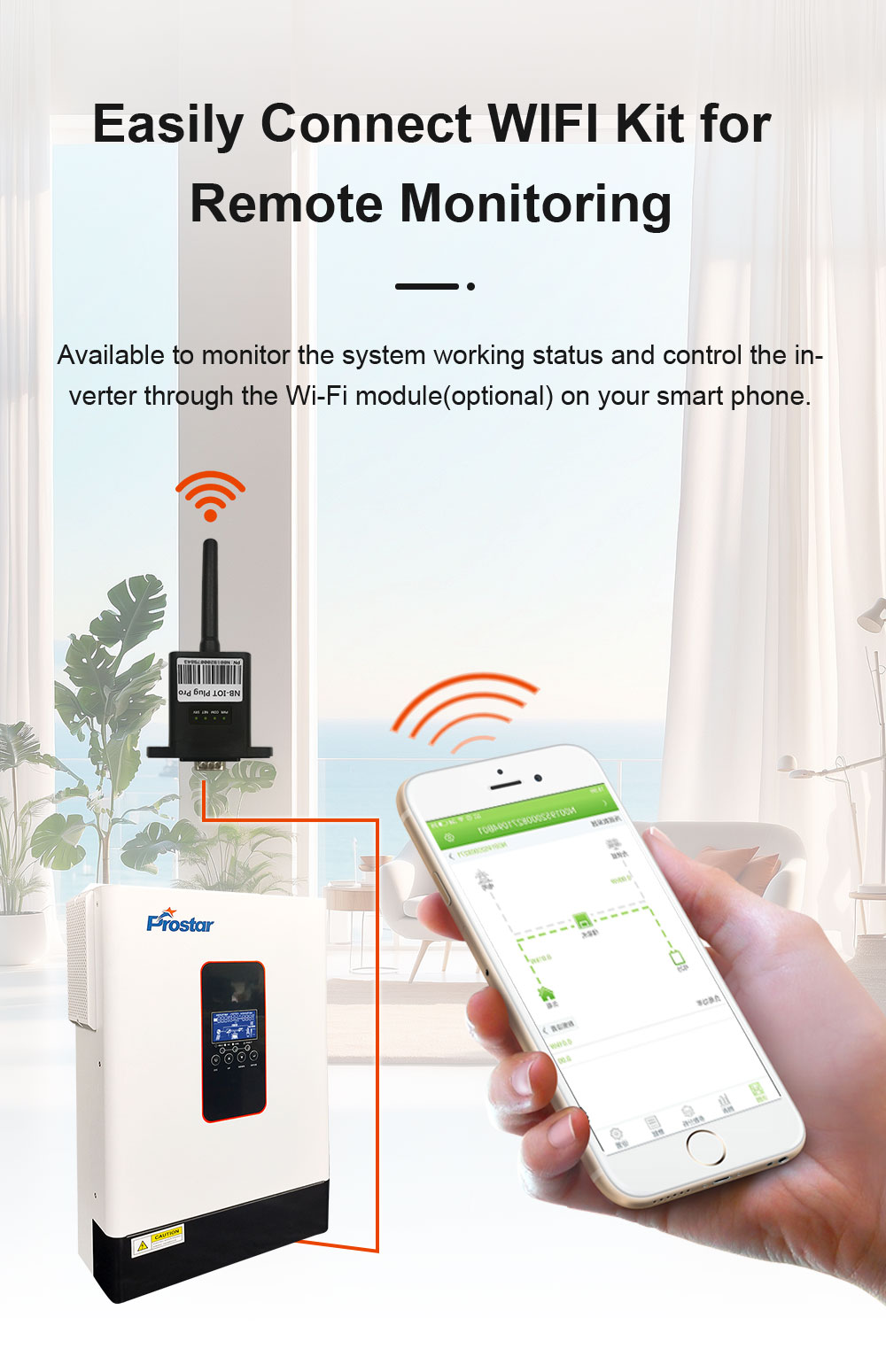

WiFi Communication Interface Ready
The inverter is WiFi communication interface ready, enabling users to use WiFi kit to track and monitor their solar system performance remotely via mobile or desktop platforms, ensuring full visibility of energy production, battery status, and system health.

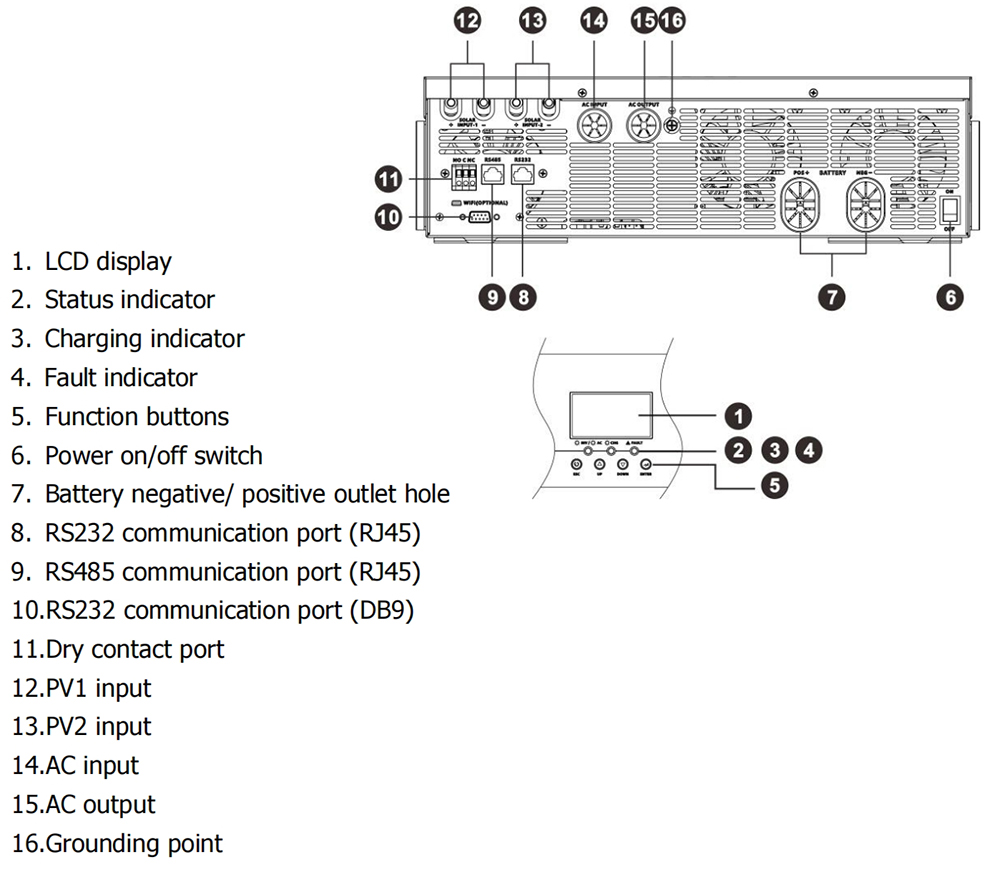

Off Grid Solar inverter Overview

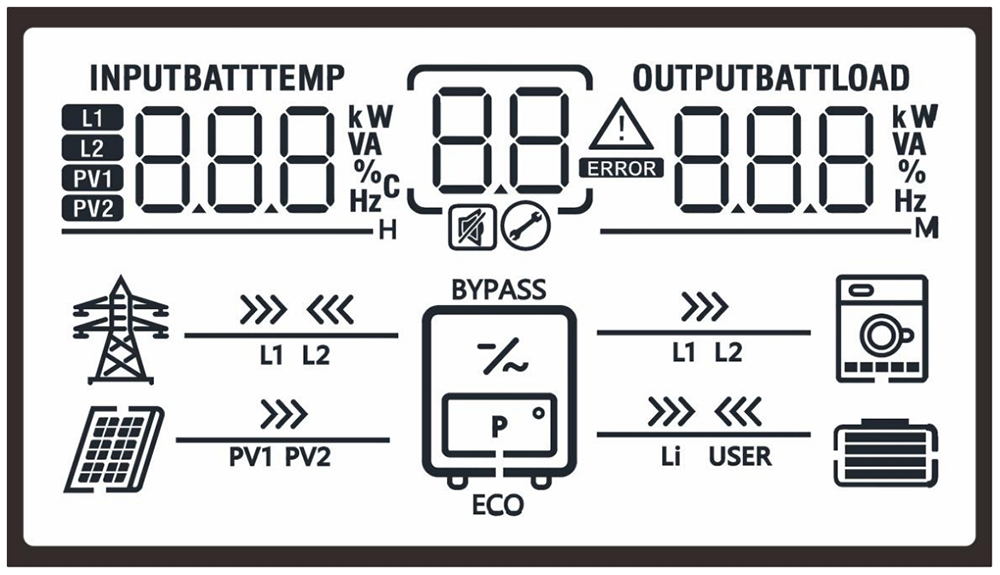

Solar Inverter LCD Display

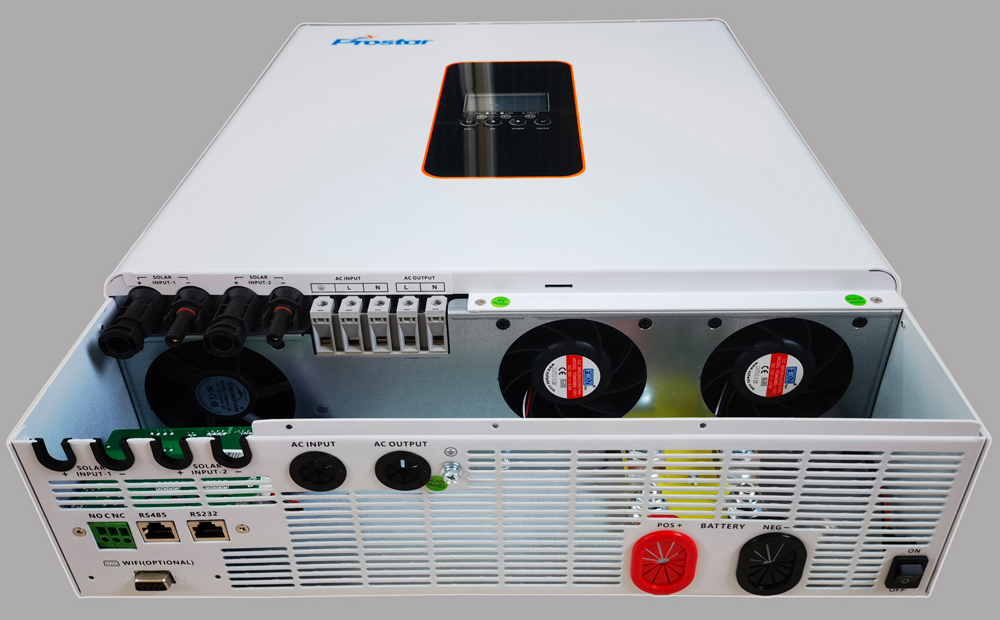

Solar Inverter Charger Details

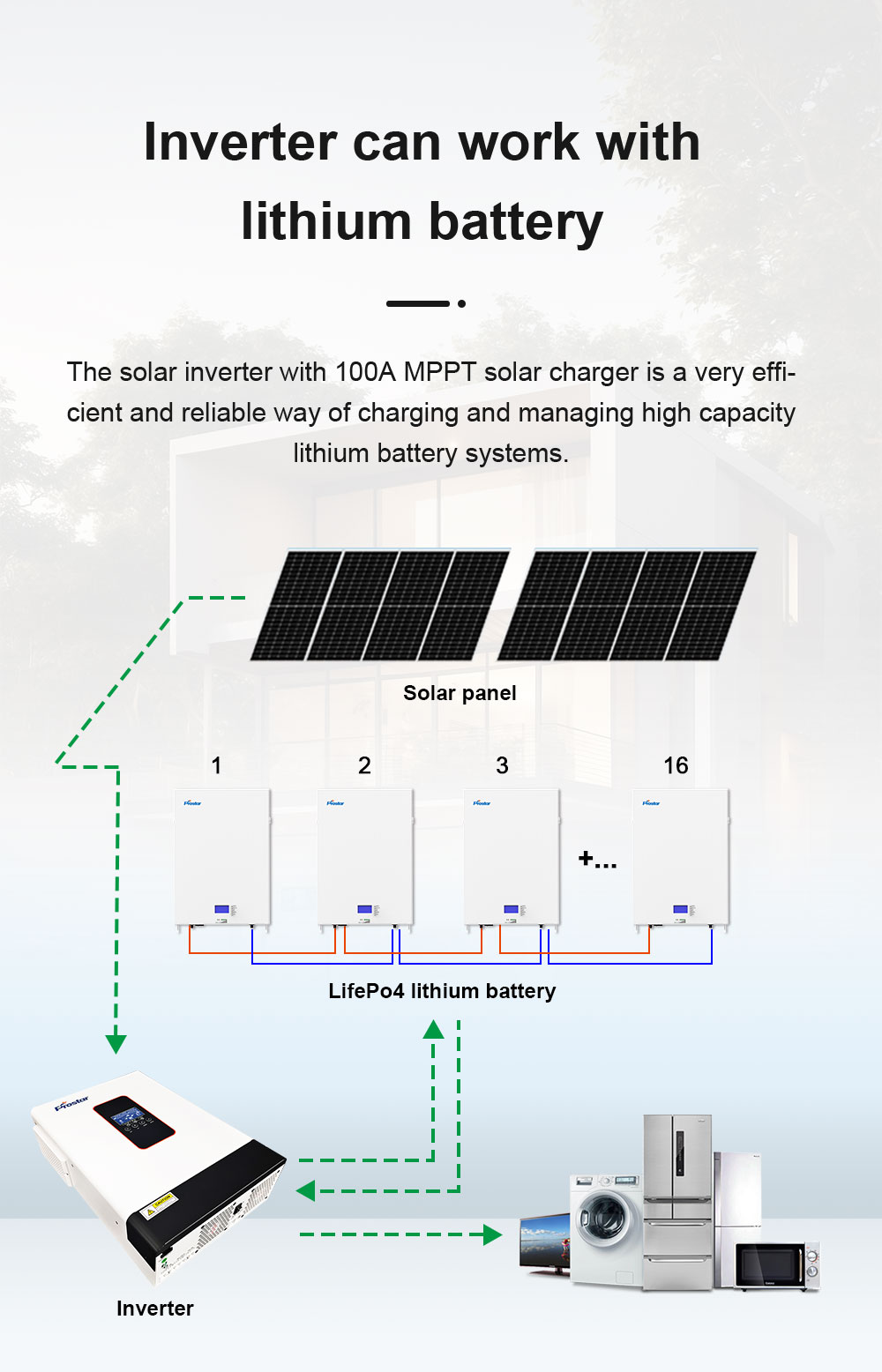

Hybrid Solar Inverter Connect Lithium Battery
If choosing lithium battery for the inverter, you are allowed to use the lithium battery only which we have configured. There’re two connectors on the lithium battery, RS485 port of BMS and power cable.
Please follow below steps to implement lithium battery connection:
- Assemble battery terminal based on recommended battery cable and terminal size.
- Connect the end of RS485 port of battery to BMS(RS485) communication port of inverter.
Lithium battery communication and setting
if choosing lithium battery, make sure to connect the BMS communication cable between the battery and the inverter. This communication cable delivers information and signal between lithium battery and the inverter.
This information is listed below:
- Re-configure charging voltage, charging current and battery discharge cut-off voltage according to the lithium battery parameters.
- Have the inverter start or stop charging according to the status of lithium battery.

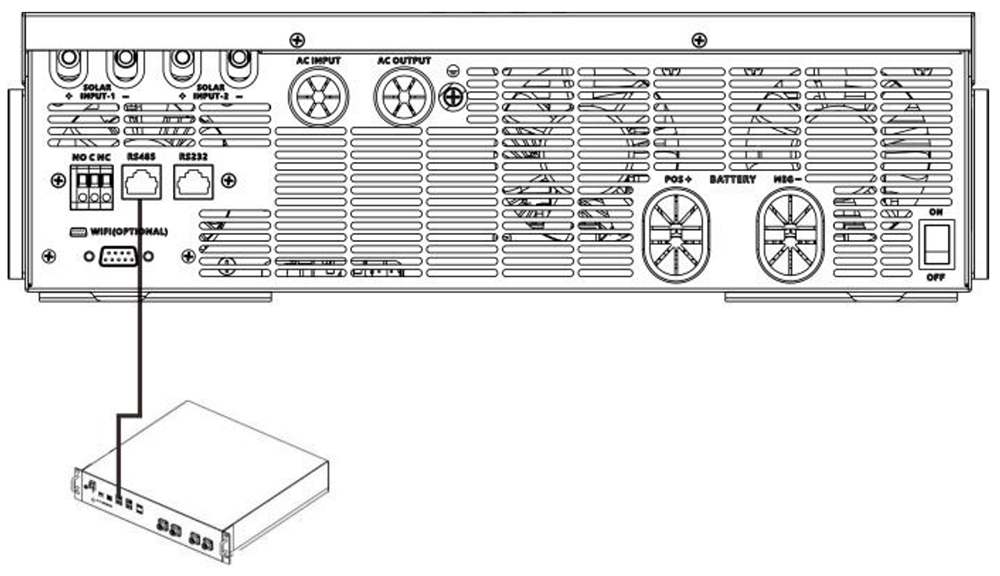

Connect the end of RS485 of battery to RS485 communication port of inverter
Make sure the lithium battery RS485 port connects to the inverter is Pin to Pin, the communication cable is inside of package and the inverter RS485 port pin assignment shown as below:
| PIN Number | RS485 Port |
| PIN1 | RS485-B |
| PIN2 | RS485-A |
| PIN7 | RS485-A |
| PIN8 | RS485-B |
PYLON US2000 lithium battery configuration
# 1. Configuration

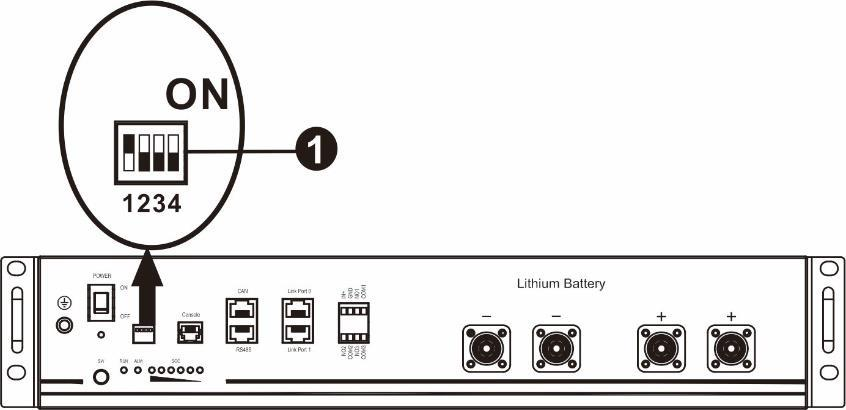

Dip Switches: The battery is equipped with 4 dip switches that control the baud rate and battery group address. When a switch is in the “OFF” position, it signifies “0”, and when in the “ON” position, it signifies “1”.
- Dip 1: Set to “ON” to configure the baud rate to 9600.
- Dip 2, 3, and 4: Reserved for setting the battery group address. These switches are used on the master battery (first battery) to configure or modify the group address.
NOTE: “1” is upper position and “0” is bottom position.
#2. Installation
Step 1. Use the RS485 cable to connect inverter and Lithium battery.
Step 2. Switch on Lithium battery.

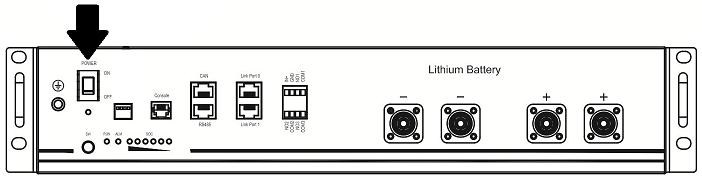

Step 3. Press and hold the power button for more than three seconds to activate the battery. The power output will be ready.
Step 4. Turn on the inverter.
Step 5. Ensure that the battery type is set to “Li2” in LCD Program 5.
If communication between the inverter and battery is successful, the battery icon (Li) on LCD display will light.
The Articles You may Like
| MODEL | PIE11K-48L |
| Capacity | 11KVA/11KW |
| Dimensions,D x W x H(mm) | 540x415x122 |
| Net Weight(Kg) | 15 |
| Parallel Capability | NO |
| INPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
| Frequency | 50/60 Hz(Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC±5% |
| Surge Power | 22KVA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 94% |
| Overload Protection | 5s@>=150% load; 10s@110%~150% load |
| Crest Factor | 3:1 |
| Admissible Power FACTOR | 0.6~1（inductive or capacitive) |
| Grid-tie Operation | Option |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC / CV |
| Max. Discharge Current | 220A |
| Lithium Battery Activation | Yes (by PV or Utility) |
| Lithim battery Communication | Yes |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 5500Wx2 |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~500VDC |
| Max.Solar Input Current | 18Ax2 |
| Max.Solar Charge Current | 160A |
| Max.AC Charge Current | 120A |
| Max.Charge Current（PV+AC) | 160A |
| PHYSICAL | |
| Display | LCD + LED |
| Protection Level | IP20 |
| Communication Interface | RS232/RS485/Dry Contact |
| ENVIRONMENT | |
| Operating Temperature Range | -10℃ to 55℃ |
| Storage temperature | -15℃ ~ 60℃ |
| Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |
