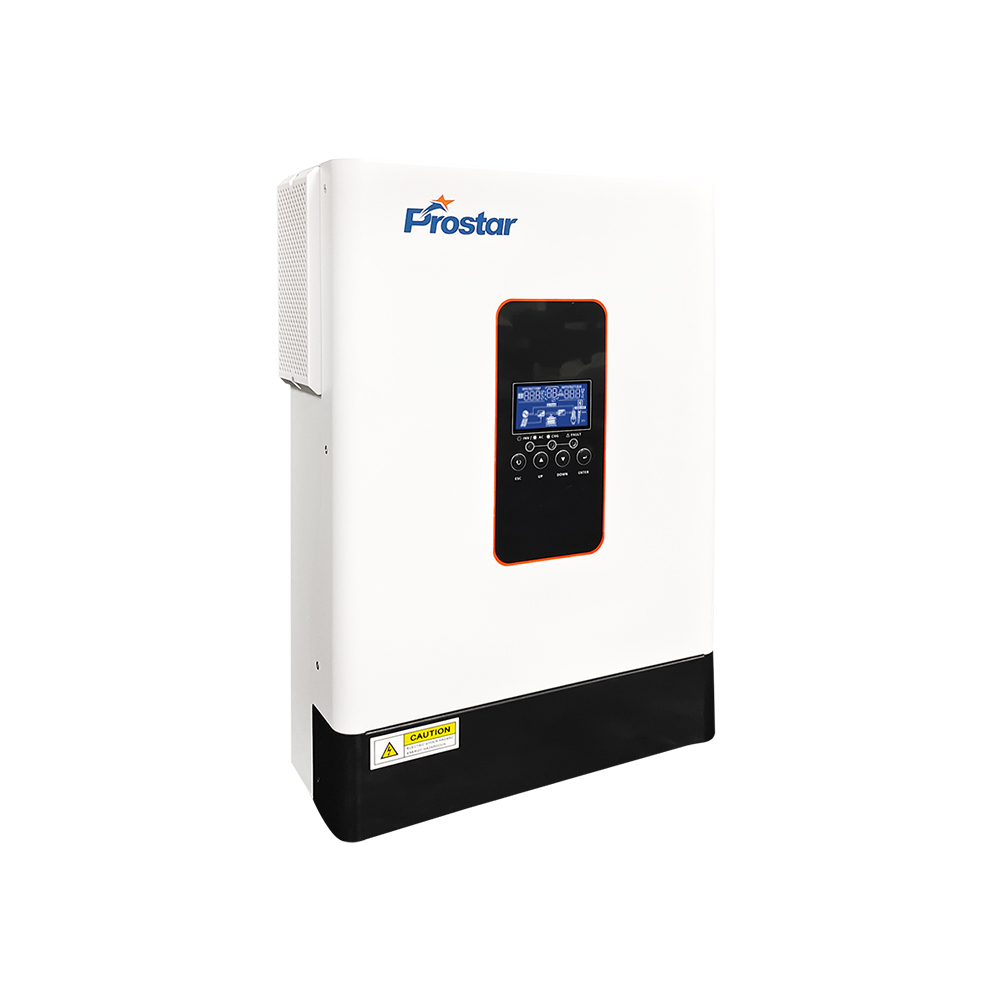

PIE3.5K-24L best high voltage 24v dc to ac 3500w off grid inverter
Off Grid Hybrid Solar Inverter | 3500W | 24V | 220Vac/230Vac | Lithium Battery Activation | Lithium Battery Communication
Prostar PIE3.5K-24L best high voltage 24v dc to ac 3500w off grid inverter is a powerful pure sine wave inverter suitable for connecting any appliances, motor, etc. It allows to work at 110% several minutes and double its power for 5 seconds for inductive loads and engine start thanks to its high power of overload.
The high voltage 24v dc to ac 3500w off grid inverter provides a pure sine wave output, ensuring a high utility power factor and accommodating a wide range of PV input voltages (60Vdc – 500Vdc). Equipped with a built-in 100A MPPT solar controller, this solar inverter demonstrates remarkable efficiency and versatility. It has the capability to activate lithium batteries, support WIFI monitoring, and establish communication with LiFeP04 batteries via RS485.
A renewed design with connectors for batteries and solar panels easier to connect are the main external changes compared to previous models. Internally it comes with additional functions that improve the charge of the batteries in front of the first multifunctional all in one inverters.
3500W Off Grid Inverter Feautures
Pure Sine Wave Output
Enjoy a clean and stable power output that is essential for powering sensitive electronics and appliances.
Wide PV Input Voltage Support
Embrace flexibility with a broad input voltage range, allowing efficient utilization of solar power (60Vdc – 500Vdc).
Built-in 100A MPPT Solar Controller
Maximize solar energy harvest with the integrated Maximum Power Point Tracking (MPPT) solar controller, ensuring high efficiency.
Lithium Battery Activation
Seamlessly activate and utilize lithium batteries for extended energy storage capacity.
Equalization Function
Optimize battery performance with the included equalization function, ensuring longevity and reliability.
Ideal for Various Applications
The PIE series is exceptionally versatile and suitable for a wide range of applications, meeting diverse power needs.
PV Inverter Product Dimension
Solar Energy Inverter Details
The Articles You may Like
| MODEL | PIE3.5K-24L |
| Capacity | 3.5KVA/3.5KW |
| Dimensions,D x W x H(mm) | 358x295x100 |
| Package Dimensions,D x W x H(mm) | 465x380x175 |
| Net Weight(Kg) | 7 |
| Parallel Capability | NO |
| INPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
| Frequency | 50/60 Hz(Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC±5% |
| Surge Power | 7000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 5s@>=150% load; 10s@110%~150% load |
| Crest Factor | 3:1 |
| Admissible Power FACTOR | 0.6~1（inductive or capacitive) |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| OverCharge Protection | 33VDC |
| Charging Method | CC / CV |
| Lithium Battery Activation | YES |
| Lithim Battery Communication | RS-485 |
| Solar Charger & AC Charger | |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 4000W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~450VDC |
| Max.Solar Input Current | 15A |
| Max.Solar Charge Current | 100A |
| Max.AC Charge Current | 80A |
| Max.Charge Current（PV+AC) | 100A |
| PHYSICAL | |
| Display | LCD + LED |
| Protection Level | IP20 |
| Communication Interface | RS-232 + RS-485 |
| ENVIRONMENT | |
| Operating Temperature Range | -10℃ to 50℃ |
| Storage temperature | -15℃ ~ 50℃ |
| Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |
