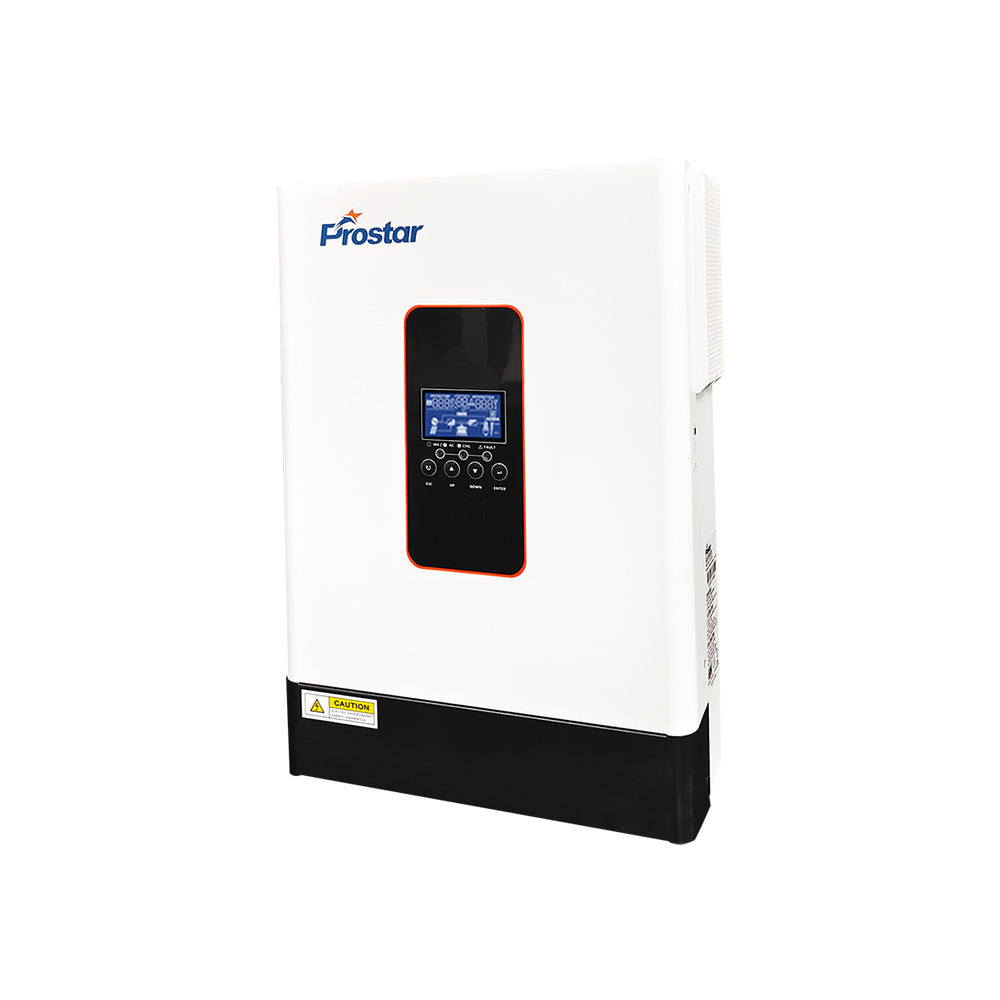

PIE5.5K-48L off grid pure sine wave photovoltaic inverter 48v 5500w
Off Grid Hybrid Solar Inverter | 5500W | 48V | 220Vac/230Vac | Lithium Battery Activation | Lithium Battery Communication
Prostar PIE5.5K-48L off grid pure sine wave photovoltaic inverter 48v 5500w is a powerful pure sine wave inverter suitable for connecting any appliances, motor, etc. This off-grid hybrid solar inverter is your go-to solution for a reliable, efficient, and versatile power supply.
The PIE series of photovoltaic inverter 48v 5500w provides a pure sine wave output, ensuring a high utility power factor and accommodating a wide range of PV input voltages (60Vdc – 500Vdc). Equipped with a built-in 100A MPPT solar controller, this solar inverter demonstrates remarkable efficiency and versatility. It has the capability to activate lithium batteries, support WIFI monitoring, and establish communication with LiFeP04 batteries via RS485.
Photovoltaic Inverter 5500W Feautures
Pure Sine Wave Output
The photovoltaic inverter 48v 5500w ensures a stable and reliable power supply with its pure sine wave output, providing clean energy for your electronic devices.
Wide PV Input Voltage Support
With an impressive PV input voltage range of 60Vdc to 500Vdc, this inverter accommodates a variety of solar panel configurations, maximizing energy harvesting efficiency.
Efficient MPPT Solar Controller
Equipped with a built-in 100A MPPT solar controller, the photovoltaic inverter 5500w boasts high efficiency in converting solar power into usable energy, optimizing your system’s overall performance.
Lithium Battery Activation
Seamlessly activate and utilize lithium batteries for extended energy storage capacity.
Output Priority Working Modes
Tailor your power usage to your specific needs with multiple output priority working modes, giving you the flexibility to customize your energy distribution.
Equalization Function
Optimize battery performance with the included equalization function, ensuring longevity and reliability.

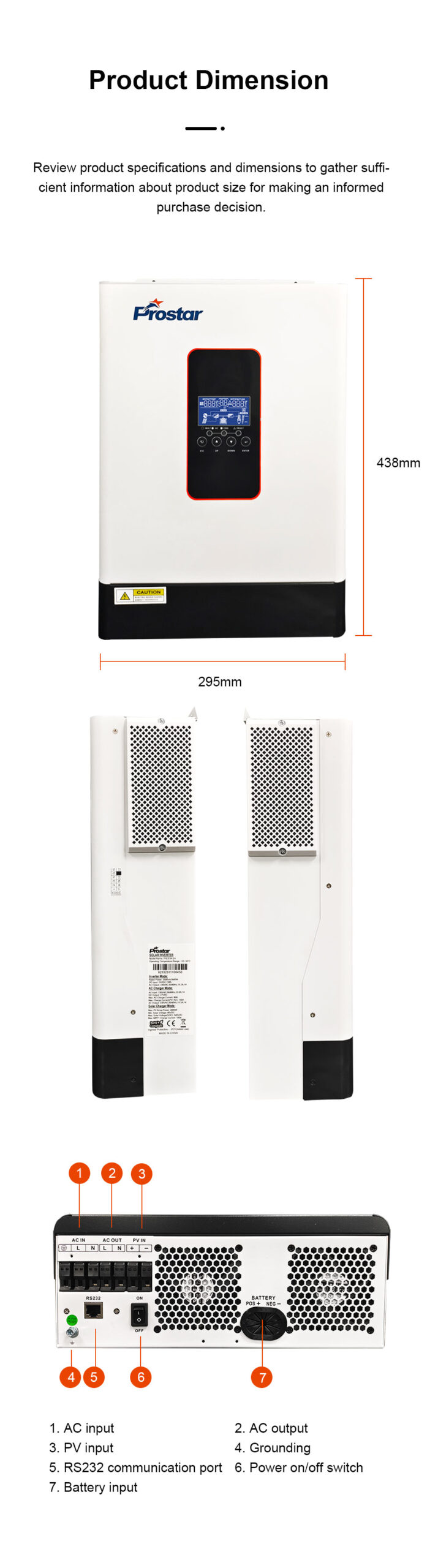

PV Inverter Overview
Solar Energy Inverter Details
The Articles You may Like
- 6 reasons for choosing how pv inverter works
- Can solar inverter work without battery
- What are lithium battery advantages and disadvantages
- How Hybrid Inverter Charger 48v Light Up Remote Areas
- Advantage in Lithium-Ion Battery Storage System for Sustainable Energy
- Solar inverter – Wikipedia
- 24v 2000 watt pure sine wave inverter
| MODEL | PIE5.5K-48L |
| Capacity | 5.5KVA/5.5KW |
| Dimensions,D x W x H(mm) | 438x295x105 |
| Package Dimensions,D x W x H(mm) | 560x375x185 |
| Net Weight(Kg) | 9 |
| Parallel Capability | NO |
| INPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
| Frequency | 50/60 Hz(Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC±5% |
| Surge Power | 11000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 5s@>=150% load; 10s@110%~150% load |
| Crest Factor | 3:1 |
| Admissible Power FACTOR | 0.6~1（inductive or capacitive) |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC / CV |
| Lithium Battery Activation | YES |
| Lithim battery Communication | RS-485 |
| Solar Charger & AC Charger | |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 5500W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~450VDC |
| Max.Solar Input Current | 18A |
| Max.Solar Charge Current | 100A |
| Max.AC Charge Current | 80A |
| Max.Charge Current（PV+AC) | 100A |
| PHYSICAL | |
| Display | LCD + LED |
| Protection Level | IP20 |
| Communication Interface | RS-232 + RS-485 |
| ENVIRONMENT | |
| Operating Temperature Range | -10℃ to 50℃ |
| Storage temperature | -15℃ ~ 50℃ |
| Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |
