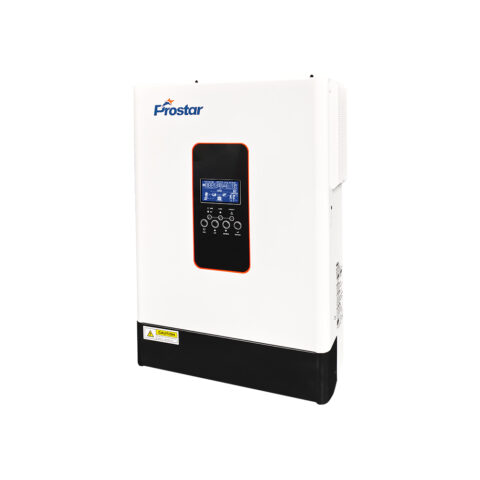

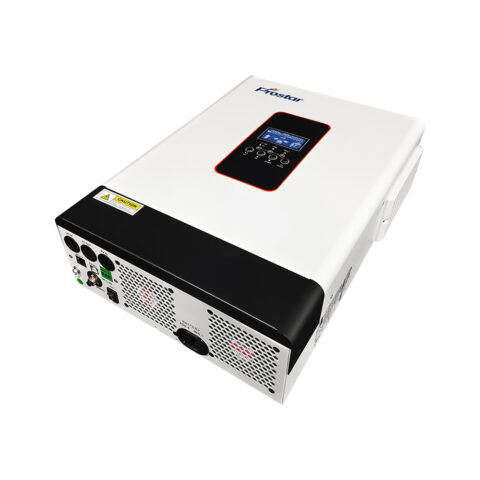

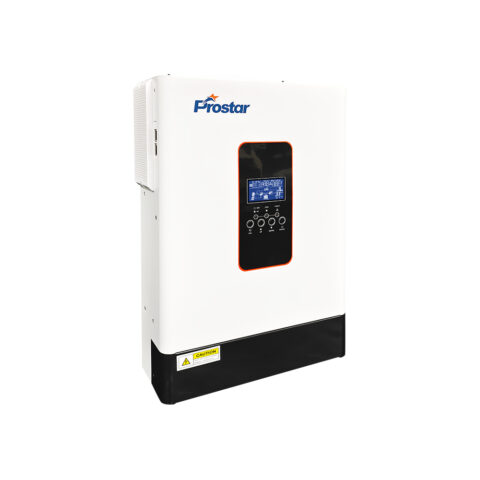

PIM5.5K-48L pure sine wave dc to ac off-grid power inverter 5500w 48v
Off Grid Hybrid Solar Inverter | 5500W | 48V | 220Vac/230Vac | Lithium Battery Activation | Parallel Operation
Prostar PIM5.5K-48L pure sine wave dc to ac off-grid power inverter 5500w 48v is equipped with an innovative lithium battery activation function.
The 48v off-grid power inverter 5500w provides a pure sine wave output, ensuring a high utility power factor and accommodating a wide range of PV input voltages (120Vdc – 500Vdc). Equipped with a built-in 100A MPPT solar controller, this off-grid power inverter demonstrates remarkable efficiency and versatility. It has the capability to activate lithium batteries, support WIFI monitoring, and establish communication with LiFeP04 batteries via RS485.
Off-grid Power Inverter 5500W Features
Pure Sine Wave Output
The off-grid power inverter 5500w 48v ensures a stable and reliable power supply with its pure sine wave output, providing clean energy for your electronic devices.
Efficient MPPT Solar Controller
Equipped with a built-in 100A MPPT solar controller, the off-grid power inverter boasts high efficiency in converting solar power into usable energy, optimizing your system’s overall performance.
Off-Grid Capability
Designed specifically for off-grid environments, this inverter provides reliable power where traditional grid connections are unavailable or unreliable.

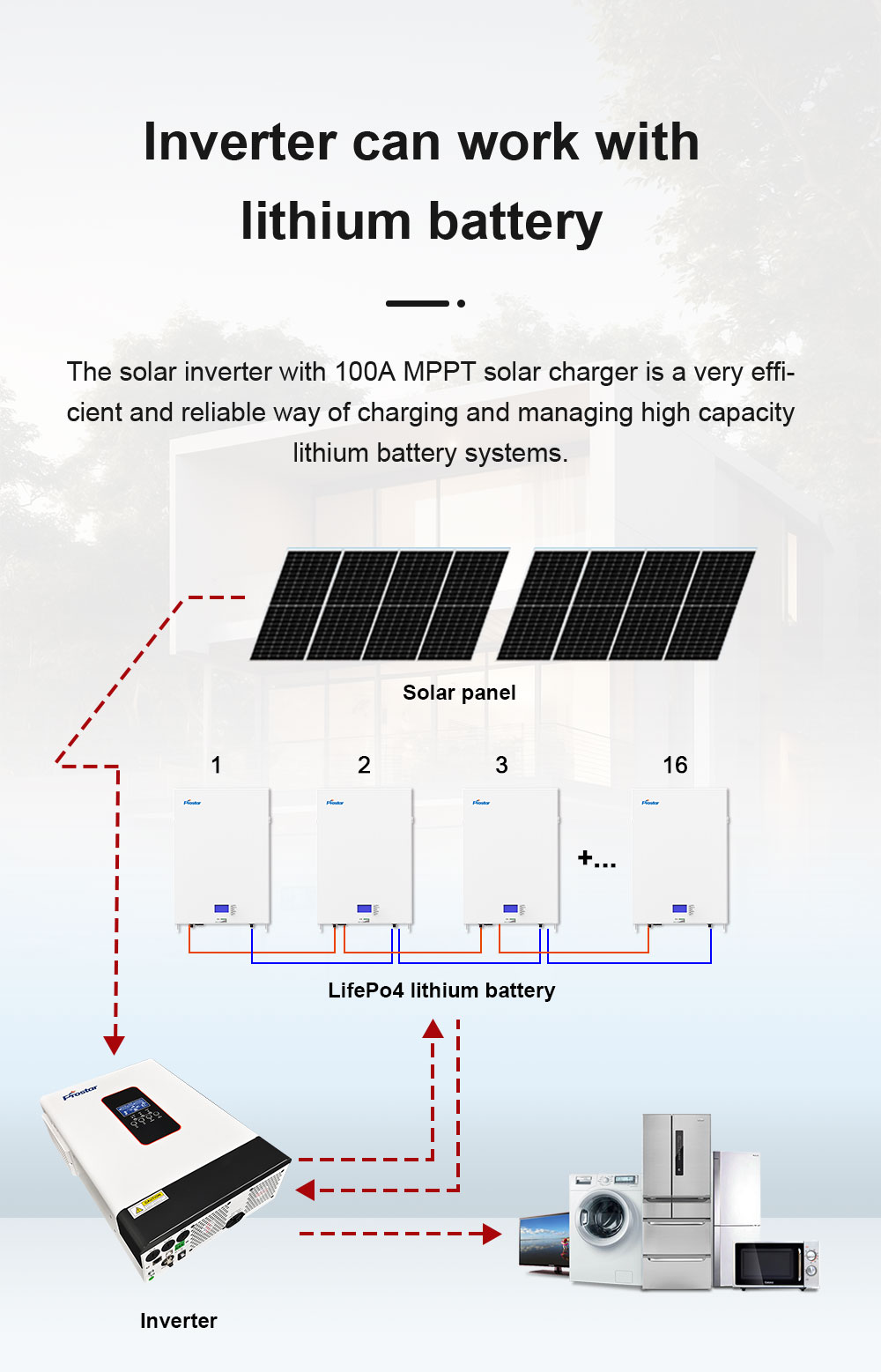

Lithium Battery Activation
Seamlessly activate and utilize lithium batteries for extended energy storage capacity.
Advanced Protection Mechanisms
Built-in safeguards such as overvoltage protection, overload protection, and thermal protection ensure the safety and longevity of both the inverter and
Output Priority Working Modes
Tailor your power usage to your specific needs with multiple output priority working modes, giving you the flexibility to customize your energy distribution.
Equalization Function
Optimize battery performance with the included equalization function, ensuring longevity and reliability.

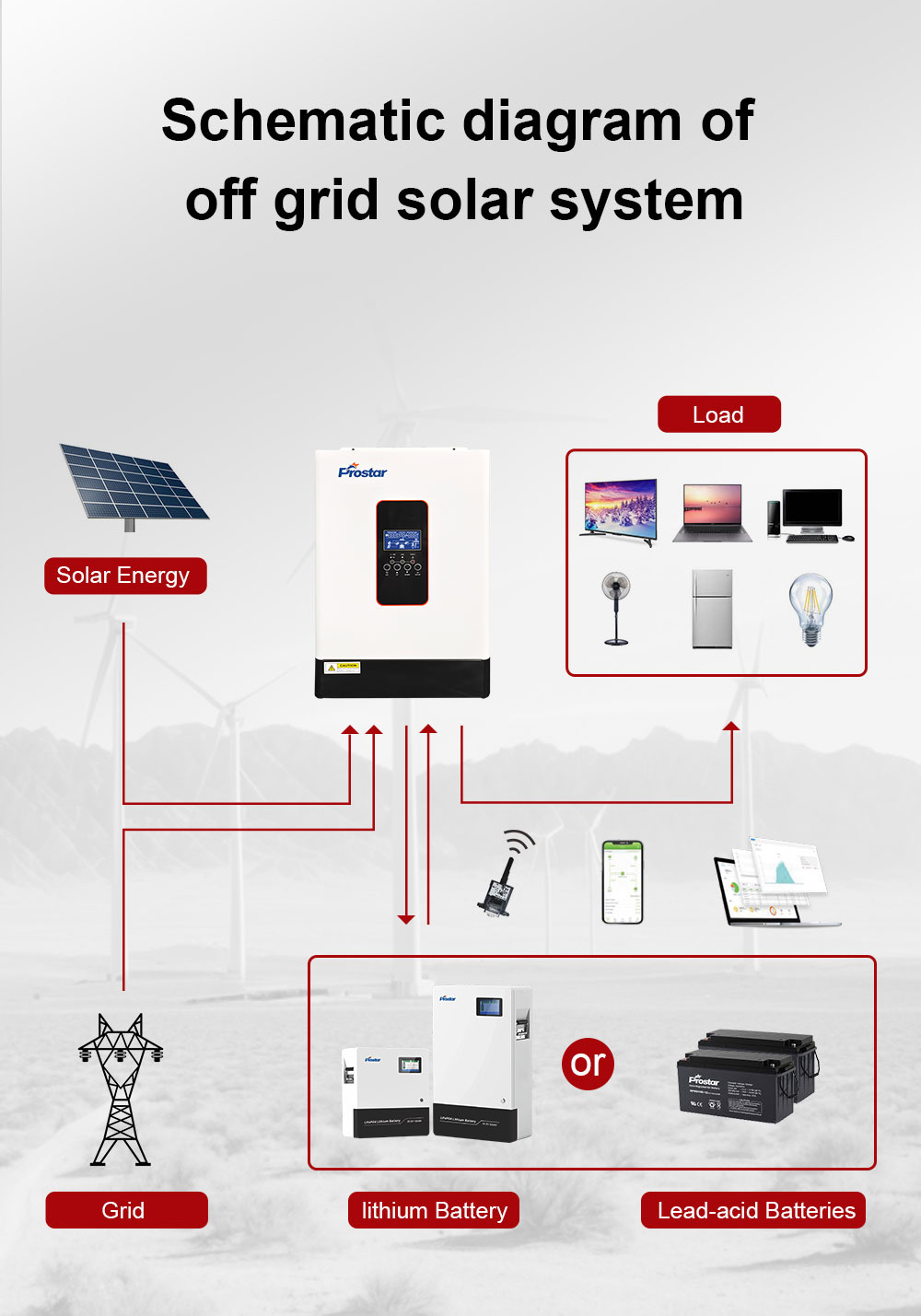

Off Grid Solar Inverter Overview
Solar Energy Inverter Details
Why Choose Prostar Solar Inverter?
Reliability
Built to the highest quality standards, our inverter delivers consistent performance even in demanding conditions.
Efficiency
With advanced technology and intelligent design, it maximizes energy conversion efficiency, reducing waste and optimizing power utilization.
Versatility
Suitable for a wide range of applications, our inverter offers flexibility and adaptability to various power requirements.
Customer Support
Backed by a dedicated support team, we provide assistance and guidance to ensure a seamless experience from installation to operation.
The Articles You may Like
- What are lithium battery advantages and disadvantages
- Can Off Grid Solar Inverter Charge Controller Run without Battery
- Uninterruptible power supply – Wikipedia
- The 10KW Solar Inverter Single Phase Paving the Way for a Sustainable Future
- Why Rack Mount UPS Power Supply is Vital for Industrial Automation and Efficiency
- Considering When Choose Reliable UPS Systems for Your Application
- The Best Off Grid Solar System for Your Needs
| MODEL | PIM5.5K-48L |
| Capacity | 5.5KVA/5.5KW |

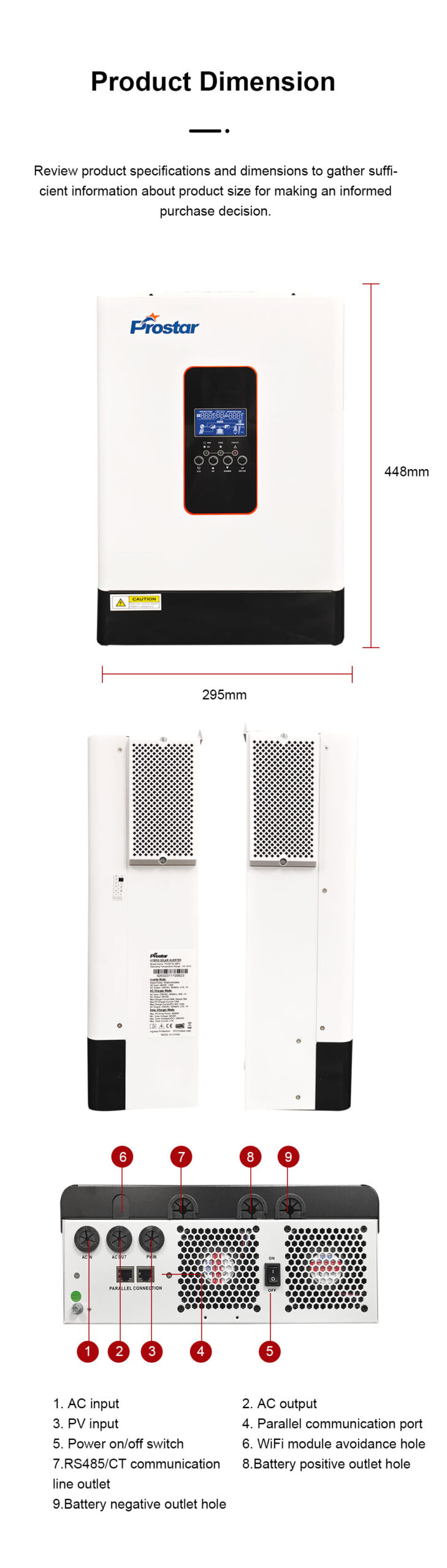

| Dimensions,D x W x H(mm) | 448x295x120 |
| Package Dimensions,D x W x H(mm) | 560x375x190 |
| Net Weight(Kg) | 10 |

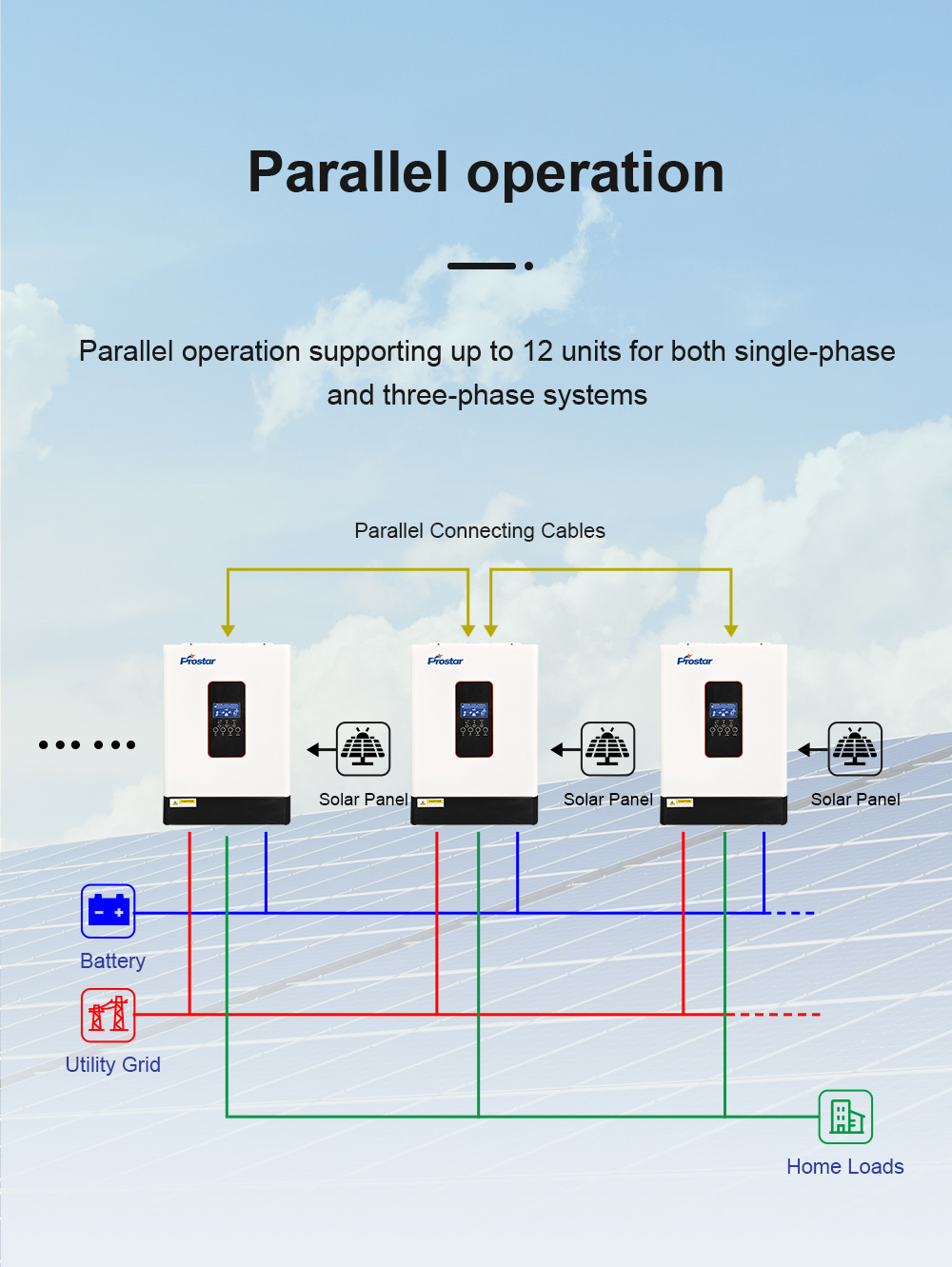

| Parallel Capability | YES, up to 12 units |
| INPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
| Frequency | 50/60 Hz(Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220VAC/230VAC/240VAC±5% |
| Surge Power | 11000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 5s@>=150% load; 10s@110%~150% load |
| Crest Factor | 3:1 |
| Admissible Power FACTOR | 0.6~1（inductive or capacitive) |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC / CV |
| Lithium Battery Activation | YES |
| Lithim battery Communication | RS-485 |
| Solar Charger & AC Charger | |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 5500W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 120VDC~450VDC |
| Max.Solar Input Current | 18A |
| Max.Solar Charge Current | 100A |
| Max.AC Charge Current | 60A |
| Max.Charge Current（PV+AC) | 100A |
| PHYSICAL | |
| Display | LCD + LED |
| Protection Level | IP20 |
| Communication Interface | USB, RS-232 + RS-485, Dry Contact |
| ENVIRONMENT | |
| Operating Temperature Range | -10℃ to 50℃ |
| Storage temperature | -15℃ ~ 50℃ |
| Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |
