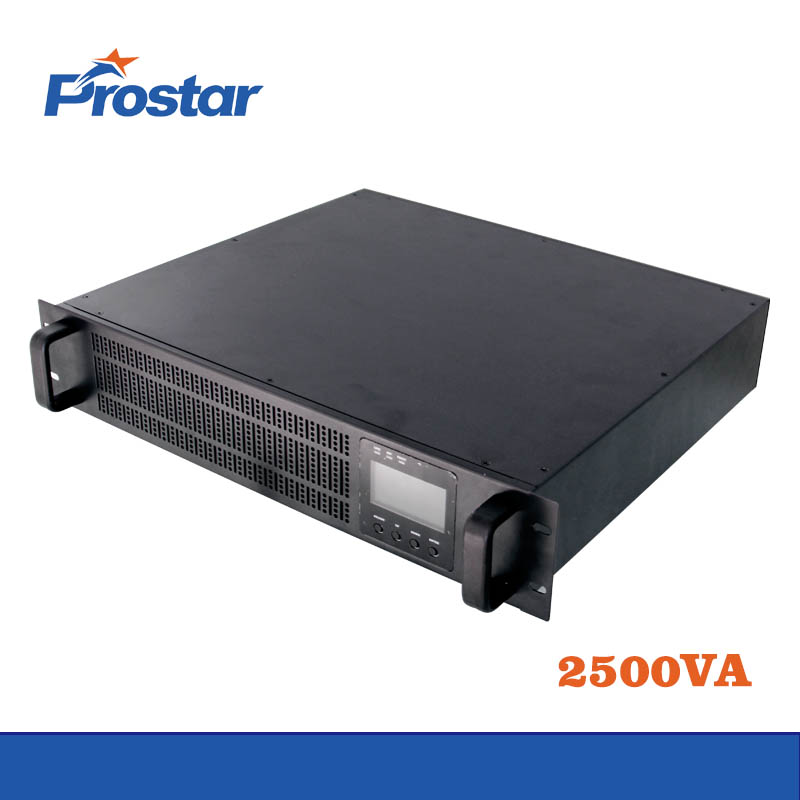

PLR2.5K 24v 2u rack mount uninterruptible power supply ups 2.5kva
Line Interactive UPS | 2500VA / 1500W | 24VDC | 220Vad/230Vac/240Vac | 2U - Rack Mount | Without Battery Inside
PLR2.5K 24v 2u rack mount uninterruptible power supply ups 2.5kva protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently.
Prostar Line interactive UPS is a full digital control of the design concept, application of intelligent CPU control System, combined with CMOS and PWM perfect, adopt frequency online interactive structure, built in power Intelligent charger novel uninterruptible power supply products.
Uninterruptible power supply ups 2.5kva is an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers.
Pure sine wave line interactive UPS is required by some equipment power supplies and prevents others from overheating, malfunctioning or failing prematurely.
Line-interactive UPS systems use automatic voltage regulation (AVR) to correct abnormal voltages without switching to battery.
UPS 2.5KVA Features
- Pure sine wave output improves compatibility with sensitive equipment
- Excellent microprocessor control guarantees high reliablility
- Battery backup power critical systems during outages
- Advanced AVR corrects power sags (brownouts) and overvoltages
- Surge protection blocks harmful transient voltages
- Front-panel LCD signals operating mode, load level, voltage, battery charge.
- LED indicators signal power, voltage correction, load level and battery charge state
- Cold start function
- RS232 port connects to computers for power management
- Optional PROSTAR IoT monitor allows you 24/7 remote access from anywhere
UPS Fault Code
| Power Amplifier Over Current | E01 |
| Output Short Circuit Protection | E02 |
| Overload Protection | E03 |
| Over Temperature Protection | E04 |
| Battery Over Voltage Protection | E05 |
| Low Battery Voltage Protection | E06 |
| Phase Reverse Protection | E07 |
| Low Output Voltage Protection | E08 |
Line Interactive UPS Details
Rack Mount UPS LCD Display
UPS Protection System
The Articles You may Like
| Model | PLR2.5K | ||||||||||
| Rated Power | 2.5KVA/1500W | ||||||||||
| INPUT | |||||||||||
| Voltage Range | 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%) | ||||||||||
| Frequency Range | 50/60 Hz±2.5Hz Auto | ||||||||||
| OUTPUT | |||||||||||
| AC Voltage Regulation | 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%） | ||||||||||
| Frequency | 50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ） | ||||||||||
| Surge Power | 4500W | ||||||||||
| Battery Efficiency | 83% | ||||||||||
| AC Efficiency | 93% | ||||||||||
| Transfer Time | 8ms default, 4ms optional | ||||||||||
| Waveform | Pure Sinewave | ||||||||||
| BATTERY | |||||||||||
| Battery Voltage | 24VDC | ||||||||||
| Floating Charge Voltage | 27.2VDC | ||||||||||
| Overcharge Protection | 30.0VDC | ||||||||||
| AC Charge Current | 0-20A Adjustable (20A default) | ||||||||||
| PROTECTION | |||||||||||
| Battery Reversal | Optional | ||||||||||
| Output Short Circuit | AC mode:Jump fuse, UPS mode: Shut down | ||||||||||
| Overload | Full load 100%, UPS alarm. Overload 120%, UPS shut down output in 10s. Once the load back to normal, UPS recover output. | ||||||||||
| High AC Voltage | Turn off AC,turn to UPS mode automatically | ||||||||||
| Low DC Voltage | UPS shut down automatically,Once the AC recover, UPS turn on and charge automatically | ||||||||||
| Over Temperature | Power Off | ||||||||||
| ENVIRONMENT | |||||||||||
| Humidity | 15～93%（No condensation） | ||||||||||
| Temperature | -10℃ ~ 50℃ | ||||||||||
| Altitude | ≤3000m | ||||||||||
| Communication | USB, RS232, 485, SNMP (Optional) | ||||||||||
| MECHANICAL SPECIFICATIONS | |||||||||||
| Dimension, DxWxH (mm) | 483×390×88 [2U] | ||||||||||
| Net Weight (Kgs/PC) | 12.50 | ||||||||||
