PLT1KB-24 single phase 1kva line interactive ups backup for computer
Line Interactive UPS | 1000VA / 600W | 24VDC | 220Vad/230Vac/240Vac | Pure Sine Wave | 2 x 12V 9AH Battery
PLT1KB-24 single phase 1kva line interactive ups backup for computer protects sensitive equipment and data from mains problems at all times far outweighs any extra cost consideration. It provides comprehensive LCD display for users to monitor the power status.
Line interactive topology is used for protecting enterprise networks and IT applications against power failure, power sag, power surge, undervoltage and overvoltage.
With powerful protection, PLT1KB-24 single phase 1kva line interactive ups backup for computer secures your data loss free from power failure, surge, and sags.
Line-interactive UPS systems use automatic voltage regulation (AVR) to correct abnormal voltages without switching to battery.
1KVA Line Interactive UPS Features
1. Excellent microprocessor control guarantees high reliablility
Machine with CPU control, all the operational parameters of UPS are controlled by the CPU, ensuring the UPS is in the best working condition. Improved the accuracy of the product parameter, ensured full compliance of product performance, the product failure rate effectively reduce.
2. Intelligent Charger
Built-in smart charger, with TOP charge type (charging type of high current at the initial, and balanced type and floating type alternating charging), shorten the battery charging time, extend the battery life, and it is suit to the areas of high rate power cut. And the users can set charging voltage and charging current by press button.
3. Wide input voltage range
Interactive structural design, low frequency type program, with superior shock resistance. To satisfy the demand for different type of load, this might be widely used in household, commercial, industrial, outdoor base station.
4. Muti-level protection, like short circuit
| Power Amplifier Over Current | E01 |
| Output Short Circuit Protection | E02 |
| Overload Protection | E03 |
| Over Temperature Protection | E04 |
| Battery Over Voltage Protection | E05 |
| Low Battery Voltage Protection | E06 |
| Phase Reverse Protection | E07 |
| Low Output Voltage Protection | E08 |
| Hardware Protection | The over current protector will jump off. |
| Software Protection | Shut down automatically. |
5. Well unattended function, no need turn on the UPS by manual.
6. High Efficiency and Energy Saving
7. Pure Sine Wave Output provides maximum stability and superior compatibility with sensitive equipment.
8. Boost and buck AVR for voltage stabilization
Automatic voltage regulation (AVR) technology safeguards equipment against a range of utility power fluctuations without battery operation.
9. Cold start function
10. LCD panel for comprehensive display
Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes. Supports multiple advanced user setup and operating preferences.
UPS Details

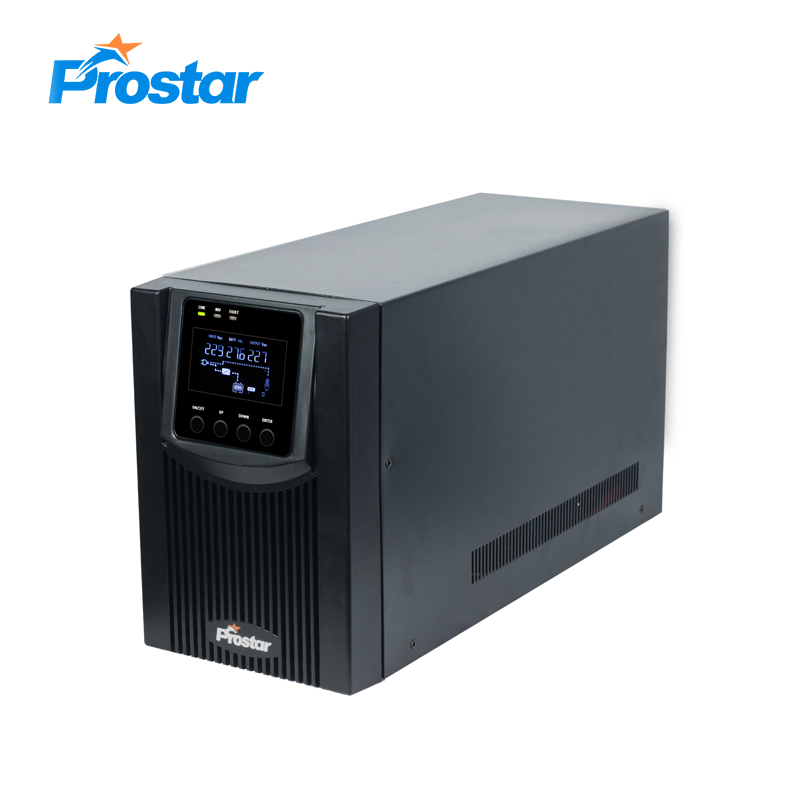

Line Interactive UPS 500VA – 2500VA front
500VA – 2500VA Line Interactive UPS rear
500VA – 2500VA Line Interactive UPS Inner
Line Interactive UPS 500VA – 2500VA Pack
The Articles You may Like
| Model | PLT1KB-24 |
| Rated Power | 1KVA/600W |
| INPUT | |
| Voltage Range | 100V/110V/120V/127AC or 220V/230V/240VAC(+25%,-36%) |
| Frequency Range | 50/60 Hz±2.5Hz Auto |
| OUTPUT | |
| AC Voltage Regulation | 100V/110V/120V/127AC±0.5% or 220V/230V/240VAC±0.5%（AC Mode±10%） |
| Frequency | 50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ） |
| Surge Power | 1800W |
| Battery Efficiency | 81% |
| AC Efficiency | 93% |
| Transfer Time | 8ms default, 4ms optional |
| Waveform | Pure Sinewave |
| BATTERY | |
| Battery Voltage | 24VDC |
| Battery Type | Lead Acid Battery, 12V 9AH |
| Battery Numbers | 2 Pieces |
| Floating Charge Voltage | 27.2VDC |
| Overcharge Protection | 30.0VDC |
| AC Charge Current | 1.0A (Max.) |
| PROTECTION | |
| Battery Reversal | Optional |
| Output Short Circuit | AC mode:Jump fuse, UPS mode: Shut down |
| Overload | Full load 100%, UPS alarm. Overload 120%, UPS shut down output in 10s. Once the load back to normal, UPS recover output. |
| High AC Voltage | Turn off AC,turn to UPS mode automatically |
| Low DC Voltage | UPS shut down automatically,Once the AC recover, UPS turn on and charge automatically |
| Over Temperature | Power Off |
| ENVIRONMENT | |
| Humidity | 15～93%（No condensation） |
| Temperature | -10℃ ~ 50℃ |
| Altitude | ≤3000m |
| Communication | USB, RS232, 485, SNMP (Optional) |
| MECHANICAL SPECIFICATIONS | |
| Dimension, DxWxH (mm) | 381*142*209 |
| Net Weight (Kgs/PC) | 12.00 |
