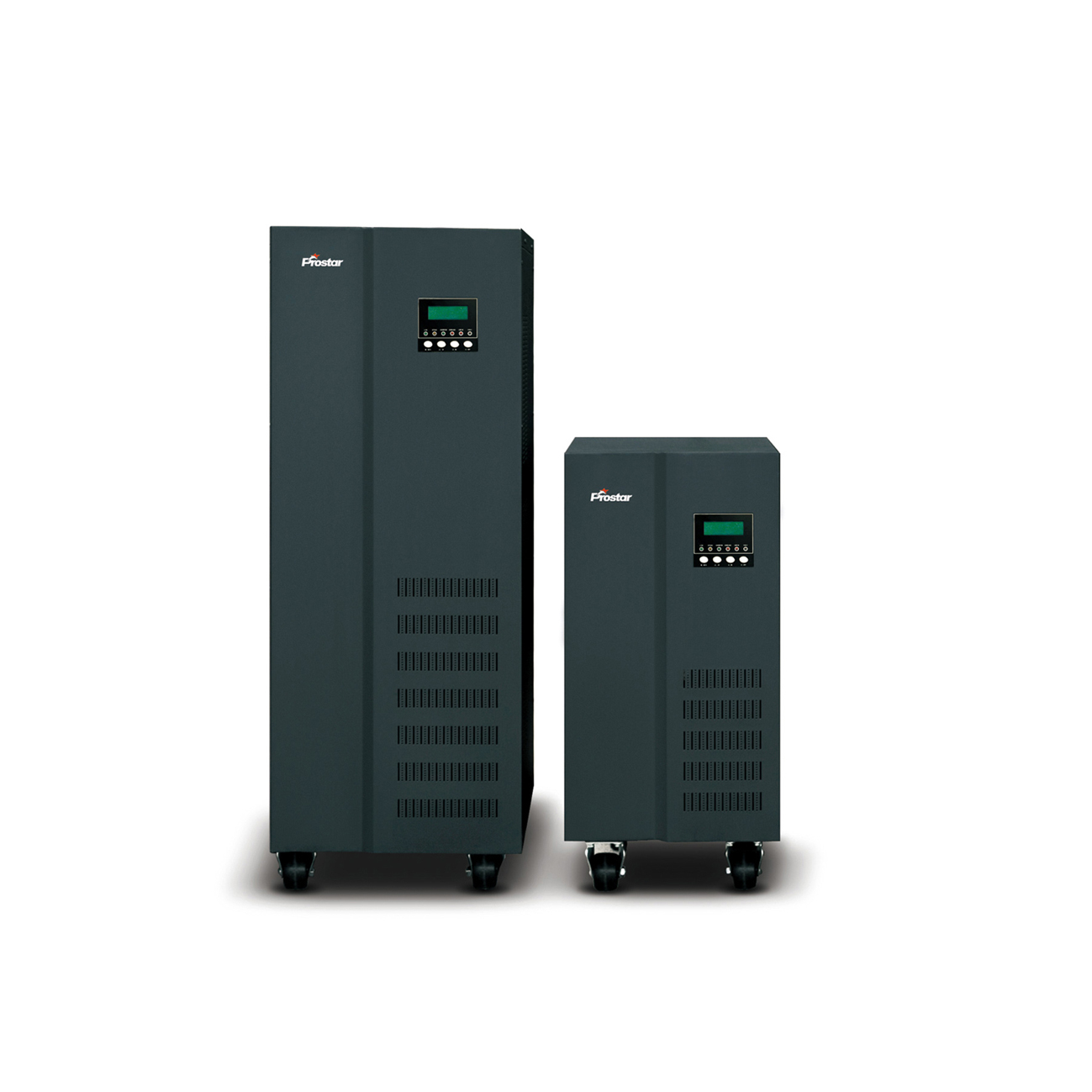

Prostar industrial grade single phase online UPS 6KVA – 30KVA
Prostar Highly available industrial grade single phase online UPS 6KVA - 30KVA features redundant and scalable double-conversion on-line power protection.

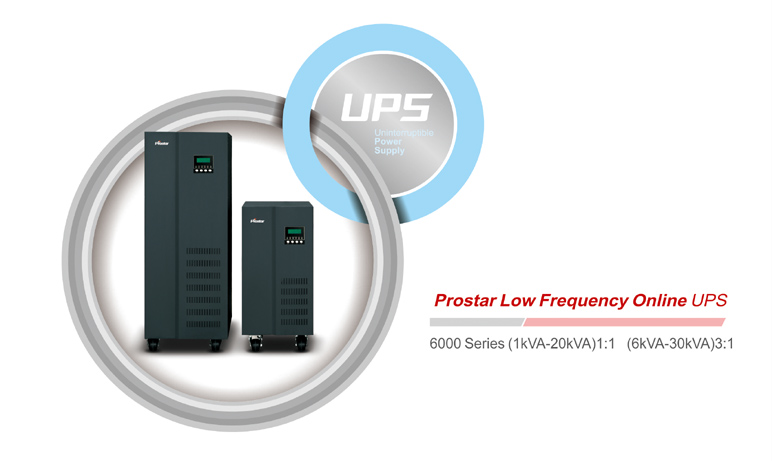

Prostar 6000 Series low frequency online UPS has been designed as combined advanced IGBT technology with hi-frequency wider-modulated technology (PWM), Prostar industrial grade single phase online UPS 6KVA – 30KVA, which make customer could obtain hi-quality power output and optimized efficiency under each operation load. And the advanced modular design to reduce the average time to repair (MTTR), and the best maintenance.It also with the most advanced phase-balanced technology, and it features best stability, even if loss-phase, it could still operate at normal condition, so it’s suitable for any worse power supply. Double conversion, pure sine wave output line design could supply the low-distortion pure sine wave power, so it can provide the best power protection to the users’ equipment. And with the isolated output transformer, which ensure that the entire the isolation of the load and public electric.
| Model | SU6K | SU6KB | SU10K | SU10KB | SU15K | SU20K | SU30K |
| Capacity | 6KVA/4.8KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW |
| Noise | 48dB~54dB(Distance 1 Meter) | ||||||
| Dimension(WxDxH mm) | 264x530x592 | 264x630x760 | 343x632x740 | 400x620x1110 | 343x632x740 | 480x740x1170 | |
| Weight(Kgs) | 53 | 98 | 91 | 220 | 109 | 122 | 198 |
| INPUT | |||||||
| Voltage | Single Phases Two Wires + G, 110Vac/120Vac/128Vac/220Vac/230Vac/240Vac ± 25% | ||||||
| Frequency | 50Hz/60Hz±10% | ||||||
| Power Factor | ≥0.91 | ||||||
| OUTPUT | |||||||
| Voltage | Single Phases Two Wires + G, 110Vac/120Vac/128Vac/220Vac/230Vac/240Vac ± 1% | ||||||
| Frequency | 50Hz/60Hz±0.05% | ||||||
| Harmonic Distortion | Linear load<3%, Non-linear load<5% | ||||||
| Overload Capacity | 110%≥300Min, 125%≥10Min, 150%≥1Min | ||||||
| Crest Factor | 3:1 | ||||||
| Wave Form | Pure sine wave | ||||||
| Transfer Time | 0ms | ||||||
| BATTERY | |||||||
| Type | Support VRLA Battery | ||||||
| D.C. Voltage | 192Vdc | 336Vdc | |||||
| Battery Number | – | 16Pcs | – | 16Pcs | – | – | – |
| Battery Capacity | – | 12V7AH | – | 12V24AH | – | – | – |
| Max. Charging Current | 0.2AxC10 | ||||||
| Charging Time(Standard) | 12hours | ||||||
| SYSTEM | |||||||
| Protection | Input over-voltage, under-voltage; output overload, shortcircuit; Inverter over-temperature; Battery under-voltage,over-voltage | ||||||
| IP Protection | IP20 | ||||||
| Parallel Mode | N+1 can be in parallel with differenct power capacity | ||||||
| Software Interface | Windows9x,2000,NT,ME,XP,Linux,Novell,Macosx,NT4.0 | ||||||
| Meantime Between Failures | 300,000Hours | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0℃ to 40℃ | ||||||
| Humidity | 0~95% (non-condensing) | ||||||
| Altitude | <1000m (with increase of 100m,it will reduce output of 1%) max. 4000m | ||||||
| Storage Temperature | -15℃ to 50℃ | ||||||
| MANAGEMENT | |||||||
| Communication Interface | RS232 | ||||||
| SNMP | Power managemetn from SNMP manager and web browser | ||||||
