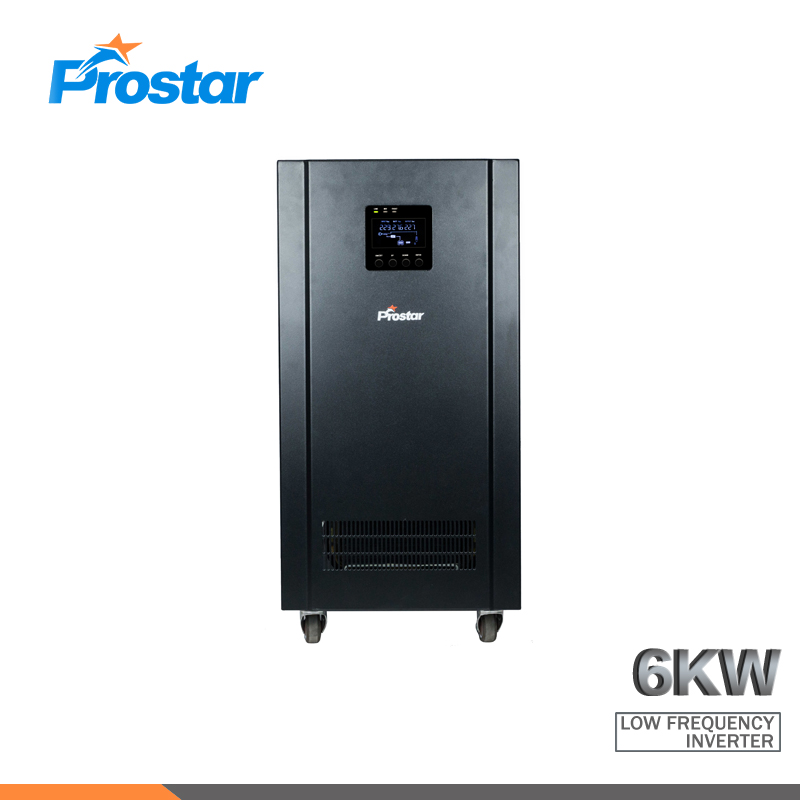

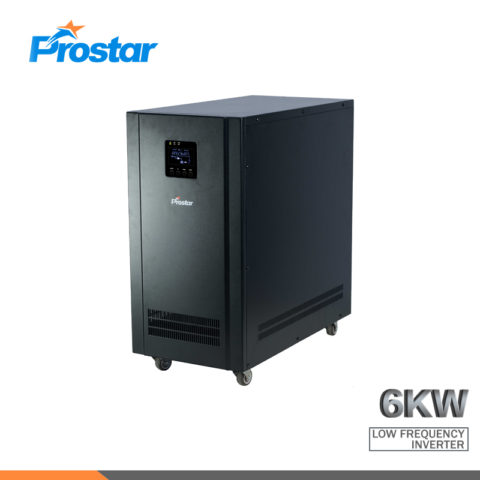

Prostar PIH6K-48 6000 watt power inverter 48V solar power system

Prostar PIH6K-48 6000 watt power inverter 48V is an electronic device or circuitry that changes direct current (DC) to alternating current (AC).

SKU: PIH6K-48 Category: 48V Home Inverter

General Details
Price Inquiry
Specification
Documents

Prostar PIH6K-48 pure sine wave 48V 6000 watt power inverter is an electronic device or circuitry that changes direct current (DC) to alternating current (AC). The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry. The inverter does not produce any power; the power is provided by the DC source.

Prostar pure sine wave 48V 6000 watt power inverter can be entirely electronic or may be a combination of mechanical effects (such as a rotary apparatus) and electronic circuitry. Static inverters do not use moving parts in the conversion process.

Prostar pure sine wave 48V 6000 watt power inverter is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50Hz or 60Hz.

48vdc inverter built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

Prostar pure sine wave 48V 6000 watt power inverter which produces a multiple step sinusoidal AC waveform is referred to as a sine wave inverter. To more clearly distinguish the inverters with outputs of much less distortion than the modified sine wave inverter designs. Almost all consumer grade inverters that are sold as a “pure sine wave inverter” do not produce a smooth sine wave output at all, just a less choppy output than the square wave and modified sine wave inverters. However, this is not critical for most electronics as they deal with the output quite well.

Where power inverter devices substitute for standard line power, a sine wave output is desirable because many electrical products are engineered to work best with a sine wave AC power source. The standard electric utility provides a sine wave, typically with minor imperfections but sometimes with significant distortion.

Product Features & Benefits

6KW max continuous power
Pure sine wave output
48 Volt DC inverter
Built-in isolation transformer
Volt meter on front panel to monitor your battery voltage
Watt meter on front panel
LED indicator green/red that monitors ready/fault
Isolated ground neutral
On/off switch
Cold start function
Over Temperature protection
Over Load protection
Cooling fan operation thermally controlled
Internally fuse protected
AC Charging current max. 20A to meet client requirements for fast charging
Adjustable AC charging voltage to adapt to different type of batteries
Adjustable AC charging current to meet different capacity of batteries
AC output short circuit protection
Auto restart while AC is recovering
Aluminum case for optimal cooling
Instruction manual
Free 1 year tech support
1 Year Warranty Parts and Labor

Inverter System Structure

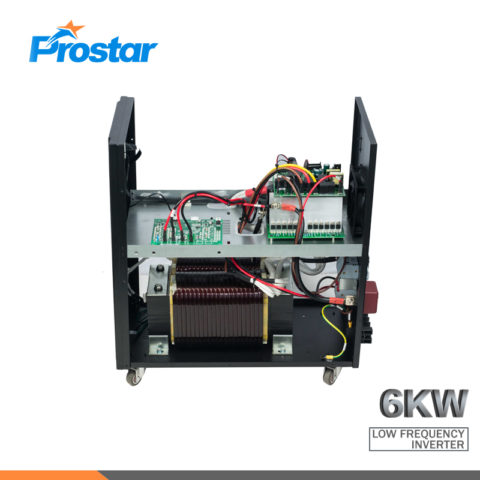

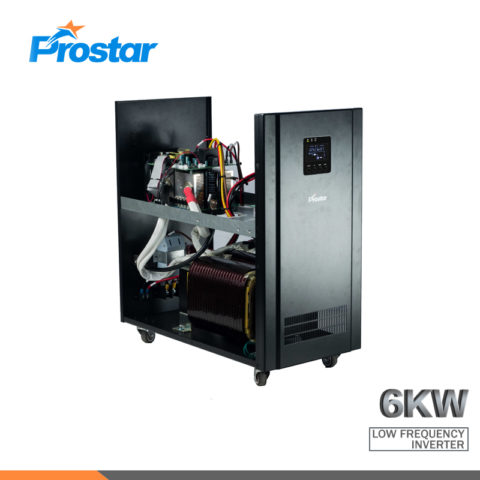

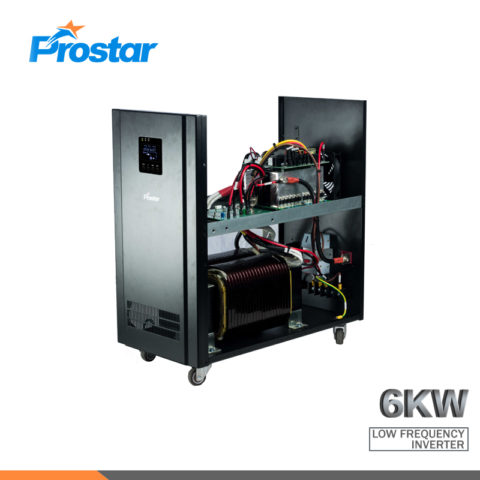

Inverter Details

Other Products

The Articles You may Like

Model		PIH6K-48
Rated Power		6000W
INPUT
Voltage Range		100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
Frequency Range		50/60 Hz±2.5Hz Auto
OUTPUT
AC Voltage Regulation		100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%）
Frequency		50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ）
Power Factor		1.0
Surge Power		18000W
Battery Efficiency		85%
AC Efficiency		93%
Transfer Time		8ms default, 4ms optional
Waveform		Pure Sinewave
BATTERY
Battery Voltage		48VDC
Floating Charge Voltage		54.4VDC
Overcharge Protection		60.0VDC
AC Charge Current		8A-40A Adjustable (40A default)
CONNECTOR
AC Input		Terminals
AC Output		Terminals
PROTECTION
Battery Reversal		Optional
Output Short Circuit		AC mode:Jump fuse, Inverter mode: Shut down
Overload		Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
High AC Voltage		Turn off AC,turn to Inverter mode automatically
Low DC Voltage		Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
Over Temperature		Power Off
ENVIRONMENT
Humidity		15～93%（No condensation）
Temperature		-10℃ ~ 50℃
Altitude		≤3000m
Communication		USB, RS232, 485, SNMP (Optional)
MECHANICAL SPECIFICATIONS
Dimension, DxWxH (mm)		535280525
Net Weight (Kgs/PC)		50.42
Product specifications are subject to change without further notice.
