PSI5K LV 48v off grid solar power 5000w 240 volt split phase inverter

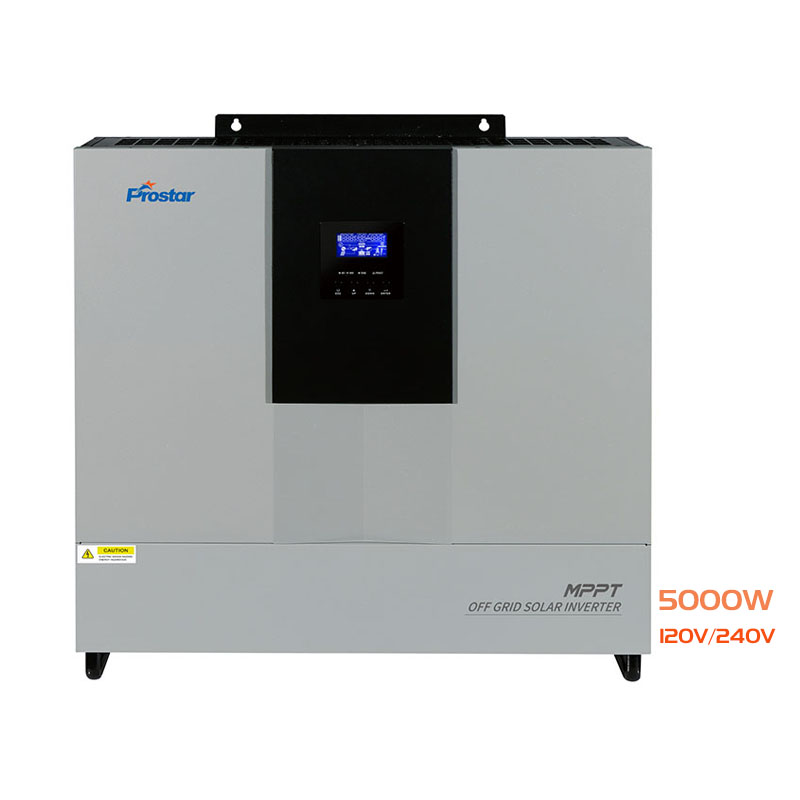

Split Phase Inverter | 5000VA/5000W | 48VDC | 120V/240V | MPPT Solar Charger 160A | Pure Sine Wave OUTPUT

SKU: PSI-5K LV Category:

PSI5K LV 48v off grid solar power 5000w 240 volt split phase inverter can support 120V/240V split phase output which is the main power standard used in North American countries including US, Canada, Mexico, Costa Rica, Ecuador, Panama, and Venezuela markets. Split phase system is defined as having 2 x 120V hot wires (normally denoted as L1 and L2 and each hot wire is 120V in relation to the neutral wire), 1 neutral wire, and a ground wire. By using the two opposite phase hot wires together 240V is created between L1 and L2.

split phase inverter

PSI5K LV 48v off grid solar power 5000w 240 volt split phase inverter with MPPT allow working in grid-connected or off-grid environments, and interfacing with multi-phase electrical sources and loads.

5000w 240 Volt Split Phase Inverter Features

  • Split Phase output (120V/240V), suitable for Mexico, Costa Rica, Ecuador, Panama, and Venezuela markets
  • Pure sine wave OUTPUT
  • Built-in 2 strings of MPPT solar charge controller
  • Configurable AC / Solar input priority via LCD setting
  • 50Hz & 60Hz support
  • Programmable parameters
  • Max up to 60A utility charging
  • Adjustable bulk & float charging voltage
  • Support either grid or generator input
  • Genset starter dry contact
  • Auto restart while AC is recovering
  • Ideal for Off-Grid or Grid-backup application
  • Overload and short circuit protection
  • LCD Display + LED indicators
  • Cold start function
  • RS232/USB communication interface
  • Stackable — parallel up to 3 units for single phase, split phase and three phase applications

Split Phase Inverter Solar System

The following illustration shows basic application of this split phase inverter. It also includes the following devices to complete the whole running system:

  • Generator or Utility Power
  • Solar Module

This inverter can power all kinds of applications at home or in the office, including motor-type applications such as tube light, fan, refrigerator, washing machine and air conditioner.

PSI-5K LV split phase inverter solar system

Inverter Overview

PSI-5K LV split phase inverter overview

AC INPUT/OUTPUT Connection

When the phase angle between L1 and L2 is 0°

In this case a single leg of the split-phase AC source is used (neutral and 120 Vac live wires). The inverter is fed with this AC source and supplies 120 Vac loads.

PSI-5K LV split phase inverter L1 n L2 phase angle 0

When the phase angle between L1 and L2 is 120°

PSI-5K LV split phase inverter L1 n L2 phase angle 120

When the phase angle between L1 and L2 is 180°

PSI-5K LV split phase inverter L1 n L2 phase angle 180

Inverter Display Panel



PSI-5K LV split phase inverter lcd display

PSI-5K LV split phase inverter lcd icon



Split Phase Inverter Packing

split phase inverter packing

The Articles You may Like

Model PSI-5K LV
Parallel Capability Yes, 3 units
RATED POWER 5000VA / 5000W
Dimension DxWxH (mm) 130x623x610
Net Weight (kgs) 30
INPUT
Rated INPUT Voltage 110VAC / 120VAC (L-N or L1-N-L2)
Selectable Voltage Range 95VAC – 140VAC (For Personal Computers)
65VAC – 140VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation
(Batt. Mode)
110VAC / 120VAC (L-N or L1-N-L2)
Surge Power 10KVA
Efficiency (Peak) 90% – 93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 64 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 4000W * 2
MPPT Range @ Operating Voltage 60VDC ~ 110VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum Solar Charge Current 80A *2
Maximum AC Charge Current 60A
Maximum Charge Current 220A
MPPT Maximum Efficiency 98%
OPERATING ENVIRONMENT
Communication Interface USB/RS232/Dry Contact
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Product specifications are subject to change without further notice.
